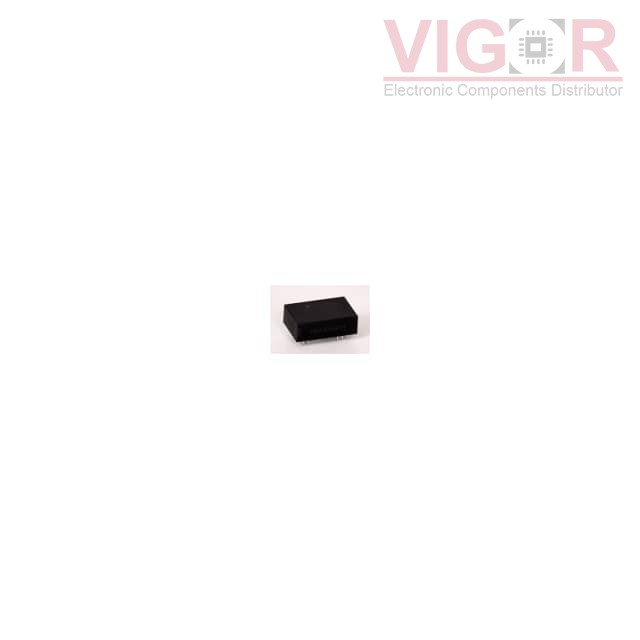

AM3T-2403SH30-PNZ

Part No :: AM3T-2403SH30-PNZ

Manufacturer: DComponents

VIGOR # :: 4122531

Description: DC DC CONVERTER 3.3V 3W

Catalog: DC DC Converters

DataSheet: AM3T-2403SH30-PNZ PDF

Country of origin: -

Date code: -

AM3T-2403SH30-PNZ Specifications

Type	Description
Series:	AM3T-PNZ (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	909mA
Power (Watts):	3 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	78%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 10 Leads
Size / Dimension:	1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
EC4AW17M Match 84%	Cincon DC DC CONVERTER 3.3V 3.3W	AM3T-2403SH30-PNZ vs EC4AW17M
LKC05-24S3P3W Match 55%	P-Duke Technology, Inc. DC DC CONVERTER 3.3V 5W	AM3T-2403SH30-PNZ vs LKC05-24S3P3W
TVN 5-2410WI Match 55%	TRACO Power DC DC CONVERTER 3.3V 5W	AM3T-2403SH30-PNZ vs TVN 5-2410WI
AM3T-2403S-PNZ Match 91%	DComponents DC DC CONVERTER 3.3V 3W	AM3T-2403SH30-PNZ vs AM3T-2403S-PNZ
TVN 5-4810WI Match 55%	TRACO Power DC DC CONVERTER 3.3V 5W	AM3T-2403SH30-PNZ vs TVN 5-4810WI
EC4AW07M Match 84%	Cincon DC DC CONVERTER 3.3V 3.3W	AM3T-2403SH30-PNZ vs EC4AW07M

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 132

Shipped from

HK warehouse

Expected Shipping Date

Aug 29 - Sep 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.3900~~	~~$12.39~~

Current price of AM3T-2403SH30-PNZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
