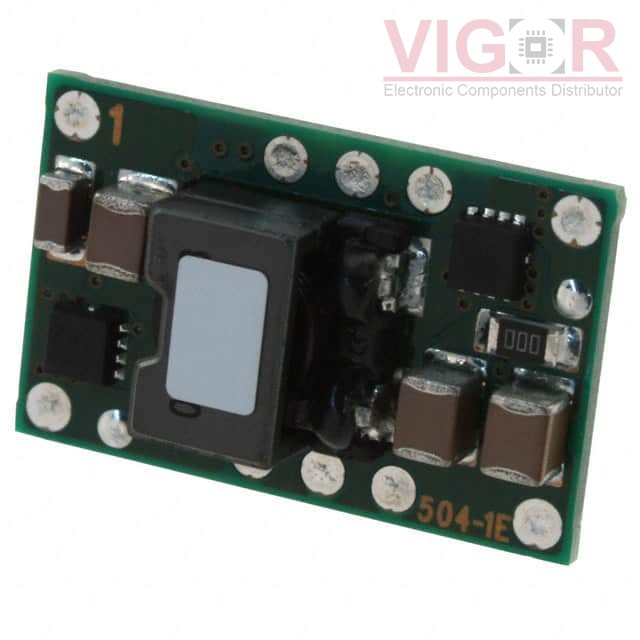

PTH12060LAZ

Part No :: PTH12060LAZ

Manufacturer: Emerson Embedded Power (Artesyn Embedded Technologies)

VIGOR # :: 4122799

Description: DC DC CONVERTER 0.8-1.8V 55W

Catalog: DC DC Converters

DataSheet: PTH12060LAZ PDF

Country of origin: -

Date code: -

PTH12060LAZ Specifications

Type	Description
Series:	PTH12060 (55W)
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	0.8 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	10A
Power (Watts):	55 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module
Size / Dimension:	1.00" L x 0.62" W x 0.35" H (25.3mm x 15.8mm x 9.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH12060LAS Match 100%	Texas Instruments DC DC CONVERTER 0.8-1.8V 18W	PTH12060LAZ vs PTH12060LAS
PTH12060YAZ Match 100%	Texas Instruments DC DC CONVERTER 0.55-1.8V	PTH12060LAZ vs PTH12060YAZ
PTH12060WAST Match 100%	VIGOR PTH12060W 1.2 TO 5.5 V 10-A, 12-	PTH12060LAZ vs PTH12060WAST
PTH12060WAZ Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 55W	PTH12060LAZ vs PTH12060WAZ
BR204 Match 100%	Sanken Electric Co., Ltd. DC DC CONVERTER 1.6-5.5V 55W	PTH12060LAZ vs BR204
PTH12060WAS Match 100%	VIGOR 1.2 TO 5.5 V 10-A, 12-V INPUT NO	PTH12060LAZ vs PTH12060WAS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 280

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$14.0917~~	~~$14.09~~
192	~~$14.0917~~	~~$2 705.60~~

Current price of PTH12060LAZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

REC3-0515DRW/H6/A/M/CTRL

DC DC CONVERTER +/-15V 3W

R2S12-2409

DC DC CONVERTER 9V 2W

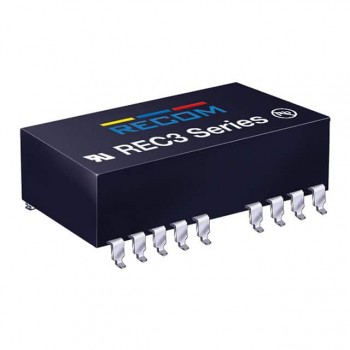

REC3-2405DRWZ/H2/A/SMD
