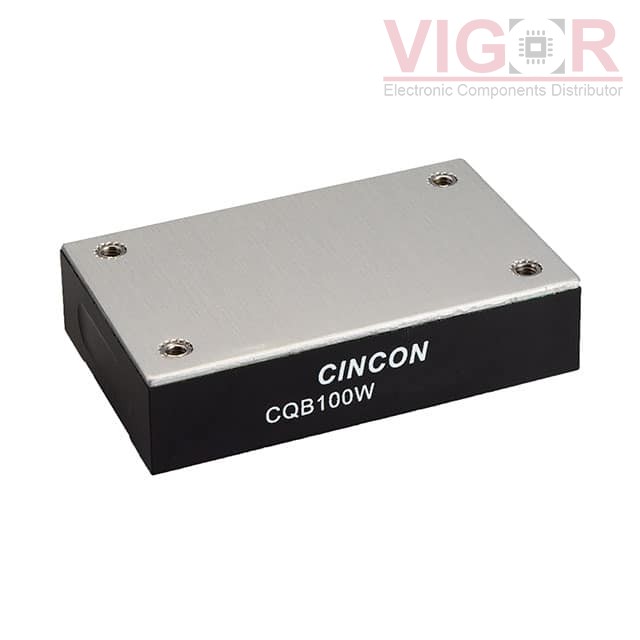

CQB100W-24S05N

Part No :: CQB100W-24S05N

Manufacturer: Cincon

VIGOR # :: 4122882

Description: DC DC CONVERTER 5V 100W

Catalog: DC DC Converters

DataSheet: CQB100W-24S05N PDF

Country of origin: -

Date code: -

CQB100W-24S05N Specifications

Type	Description
Series:	CQB100 (100W)
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C (With Derating)
Efficiency:	86.5%
Mounting Type:	Through Hole
Package / Case:	Module
Size / Dimension:	2.28" L x 1.45" W x 0.50" H (57.9mm x 36.8mm x 12.7mm)
Supplier Device Package:	Module
Control Features:	Enable, Active Low
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CQB75W-24S05 Match 63%	Cincon DC DC CONVERTER 5V 60W	CQB100W-24S05N vs CQB75W-24S05
CQB150W-24S05 Match 65%	Cincon DC DC CONVERTER 5V 150W	CQB100W-24S05N vs CQB150W-24S05
CQE50W-24S05 Match 50%	Cincon DC DC CONVERTER 5V 50W	CQB100W-24S05N vs CQE50W-24S05
CQB100W-24S05 Match 100%	Cincon DC DC CONVERTER 5V 100W	CQB100W-24S05N vs CQB100W-24S05
