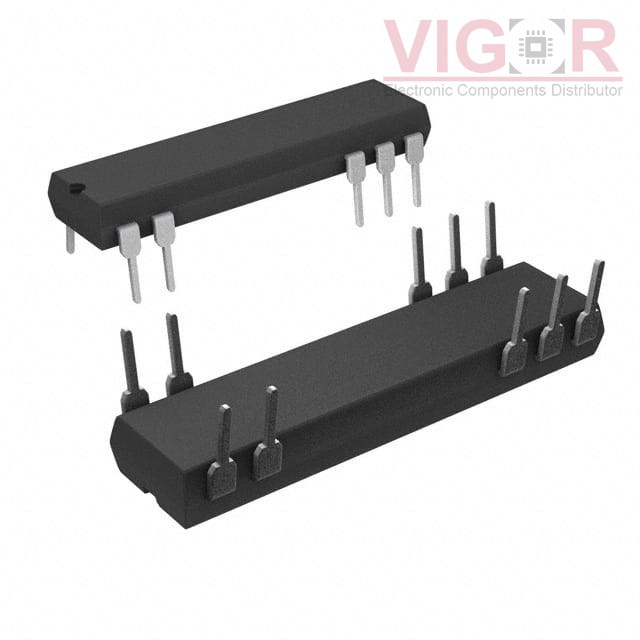

DCR022405P

Part No :: DCR022405P

Manufacturer: Texas Instruments

VIGOR # :: 4123153

Description: DC DC CONVERTER 5V 2W

Catalog: DC DC Converters

DataSheet: DCR022405P PDF

Country of origin: -

Date code: -

DCR022405P Specifications

Type	Description
Series:	DCR02 (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	400mA
Power (Watts):	2 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OTP, SCP
Operating Temperature:	-40°C ~ 70°C
Efficiency:	-
Mounting Type:	Through Hole
Package / Case:	18-DIP Module, 10 Leads
Size / Dimension:	0.90" L x 0.28" W x 0.21" H (22.9mm x 7.1mm x 5.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCR012405P Match 50%	Texas Instruments DC DC CONVERTER 5V 1W	DCR022405P vs DCR012405P
