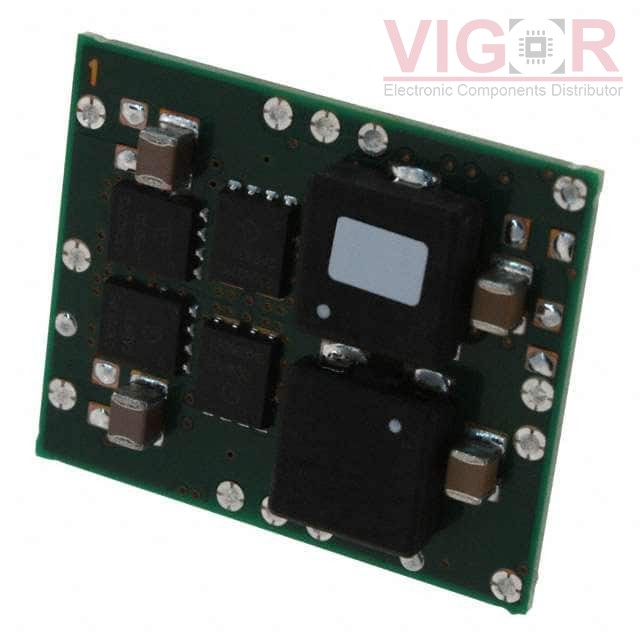

PTH12030LAZT

Part No :: PTH12030LAZT

Manufacturer: Texas Instruments

VIGOR # :: 4123410

Description: DC DC CONVERTER 0.8-1.8V 26A

Catalog: DC DC Converters

DataSheet: PTH12030LAZT PDF

Country of origin: -

Date code: -

PTH12030LAZT Specifications

Type	Description
Series:	PTH12030
Package:	Tape & Reel (TR)
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	10.2V
Voltage - Input (Max):	13.8V
Voltage - Output 1:	0.8 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	26A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	89%
Mounting Type:	Surface Mount
Package / Case:	13-SMD Module
Size / Dimension:	1.37" L x 1.12" W x 0.38" H (34.8mm x 28.4mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH12030WAZ Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 143W	PTH12030LAZT vs PTH12030WAZ
PTH12030WAS Match 100%	Texas Instruments DC DC CONVERTER 1.2-5.5V 143W	PTH12030LAZT vs PTH12030WAS
PTH12030WAZT Match 100%	VIGOR PTH12030W 1.2 TO 5.5 V 26-A, 12-	PTH12030LAZT vs PTH12030WAZT
PTH12030LAZ Match 100%	VIGOR PTH12030L 0.8 TO 1.8 V 26-A, 12-	PTH12030LAZT vs PTH12030LAZ
PTH12030LAS Match 100%	VIGOR PTH12030L 0.8 TO 1.8 V 26-A, 12-	PTH12030LAZT vs PTH12030LAS
PTH12030WAST Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTH12030LAZT vs PTH12030WAST

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 424

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$39.9080~~	~~$39.91~~
200	~~$39.9080~~	~~$7 981.60~~

Current price of PTH12030LAZT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

ZUS1R54805

DC DC CONVERTER 5V

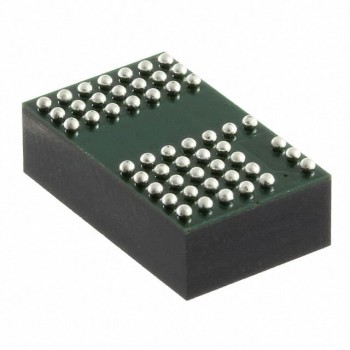

LTM8046IY#PBF
