PYBE20-Q24-D12

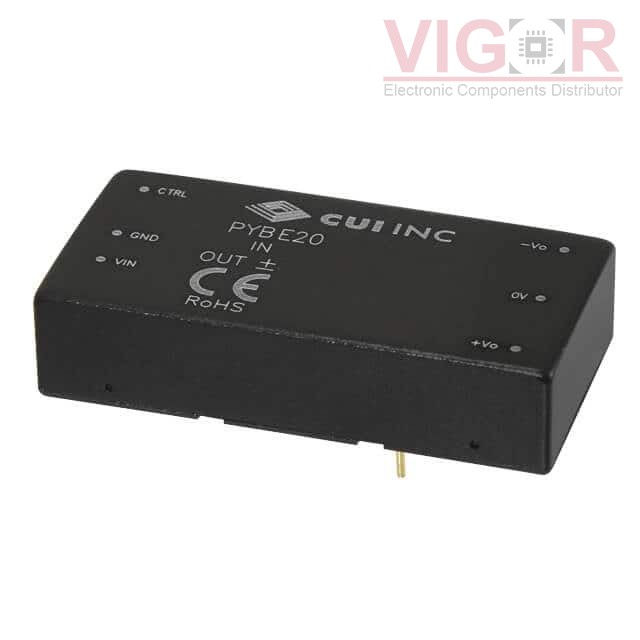

Image is for reference,
please contact us to get the real picture

Part No :: PYBE20-Q24-D12

Manufacturer: CUI Inc.

Description: DC DC CONVERTER +/-12V 20W

Catalog: DC DC Converters

Shipped from: HK warehouse

Expected Shipping Date: Oct 05 - Oct 09 2025

DataSheet: PYBE20-Q24-D12 PDF

Availability: 774 pieces

Unit Price: ~~$26.11000~~

Current price of PYBE20-Q24-D12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

PYBE20-Q24-D12 Specifications

Type	Description
Series:	PYBE20 (20W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	834mA, 834mA
Power (Watts):	20 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 60950-1
