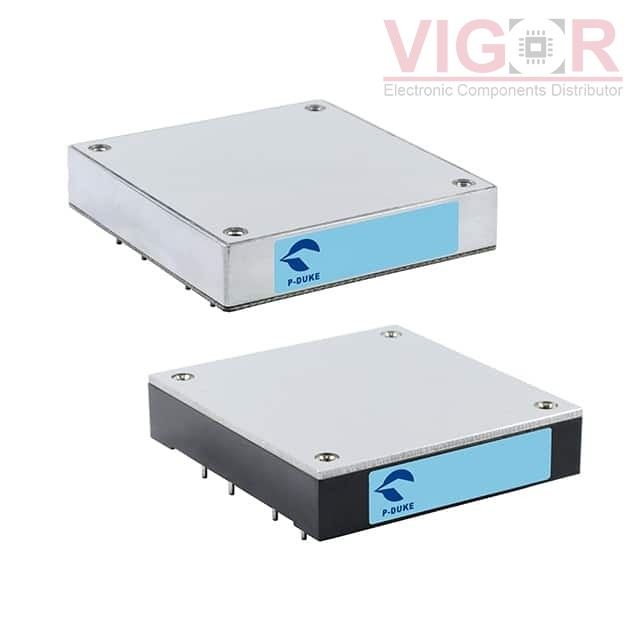

HAE75-48S12W

Part No :: HAE75-48S12W

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4124104

Description: ISOLATED /75W /VOUT:12

Catalog: DC DC Converters

DataSheet: HAE75-48S12W PDF

Country of origin: -

Date code: -

HAE75-48S12W Specifications

Type	Description
Series:	HAE75W (75W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	75V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6.3A
Power (Watts):	76 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Baseplate, Remote On/Off, Remote Sense
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	Half Brick
Size / Dimension:	2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:	Half Brick
Control Features:	Enable, Active Low
Approval Agency:	CB, CE, cURus
Standard Number:	60950-1

Alternative Products

Part Number	Manufacturer & Description	Compare
RP75H-4812SRW/N Match 96%	RECOM Power DC DC CONVERTER 12V 75W	HAE75-48S12W vs RP75H-4812SRW/N
RP75H-4812SRW/N-HC Match 96%	RECOM Power DC DC CONVERTER 12V 75W	HAE75-48S12W vs RP75H-4812SRW/N-HC
RP75H-4812SRW/P Match 96%	RECOM Power DC DC CONVERTER 12V 75W	HAE75-48S12W vs RP75H-4812SRW/P
RP75H-4812SRW/P-HC Match 96%	RECOM Power DC DC CONVERTER 12V 75W	HAE75-48S12W vs RP75H-4812SRW/P-HC
CHE75W-48S12N Match 90%	Cincon DC DC CONVERTER 12V 75W	HAE75-48S12W vs CHE75W-48S12N
75HBAW4_4812S2.25 Match 96%	TE Connectivity AMP Connectors DC-DC	HAE75-48S12W vs 75HBAW4_4812S2.25

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 766

Shipped from

HK warehouse

Expected Shipping Date

Sep 01 - Sep 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$115.6500~~	~~$115.65~~

Current price of HAE75-48S12W is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
