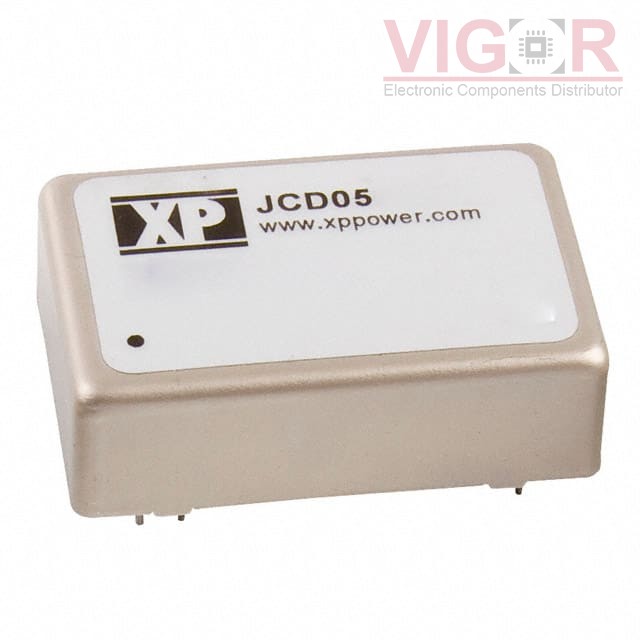

JCD0524D05

Part No :: JCD0524D05

Manufacturer: XP Power

VIGOR # :: 4124270

Description: DC DC CONVERTER +/-5V 5W

Catalog: DC DC Converters

DataSheet: JCD0524D05 PDF

Country of origin: -

Date code: -

JCD0524D05 Specifications

Type	Description
Series:	JCD (5W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-5V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	5 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	79%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.41" H (31.8mm x 20.3mm x 10.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JTC0448D05 Match 83%	XP Power DC DC CONVERTER +/-5V 4W	JCD0524D05 vs JTC0448D05
JTC0648D05 Match 86%	XP Power DC DC CONVERTER +/-5V 6W	JCD0524D05 vs JTC0648D05
JCD0424D05 Match 84%	XP Power DC DC CONVERTER +/-5V 4W	JCD0524D05 vs JCD0424D05
JCD0624D05 Match 87%	XP Power DC DC CONVERTER +/-5V 6W	JCD0524D05 vs JCD0624D05
JTC0624D05 Match 86%	XP Power DC DC CONVERTER +/-5V 6W	JCD0524D05 vs JTC0624D05
JTC0424D05 Match 83%	XP Power DC DC CONVERTER +/-5V 4W	JCD0524D05 vs JTC0424D05
