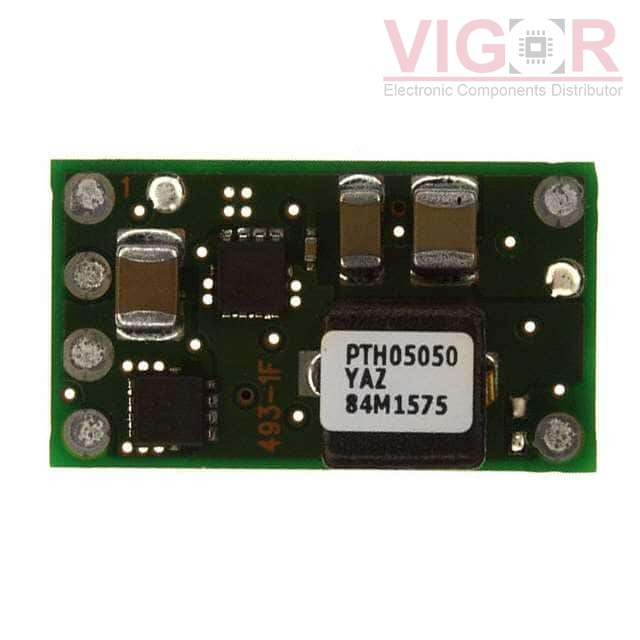

PTH05050YAZT

Part No :: PTH05050YAZT

Manufacturer: VIGOR

VIGOR # :: 4125202

Description: PTH05050Y 6 A 5-V INPUT BUS TERM

Catalog: DC DC Converters

DataSheet: PTH05050YAZT PDF

Country of origin: -

Date code: -

PTH05050YAZT Specifications

Type	Description
Series:	PTHxx050Y (10.8W)
Package:	Bulk
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	0.55 ~ 1.8V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	6A
Power (Watts):	11 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	87%
Mounting Type:	Surface Mount
Package / Case:	6-SMD Module
Size / Dimension:	0.87" L x 0.50" W x 0.34" H (22.1mm x 12.7mm x 8.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
BST04-0.7S06PCM Match 100%	Bellnix Co., LTD. DC DC CONVERTER 0.75-3.3V	PTH05050YAZT vs BST04-0.7S06PCM
PTH05050YAS Match 100%	VIGOR PTH05050Y 6 A 5-V INPUT BUS TERM	PTH05050YAZT vs PTH05050YAS
PTH05050YAZ Match 100%	VIGOR PTH05050Y 6 A 5-V INPUT BUS TERM	PTH05050YAZT vs PTH05050YAZ
PTH05050WAST Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V	PTH05050YAZT vs PTH05050WAST
PTH05050WAZT Match 100%	VIGOR PTH05050W 6 A, 5-V INPUT NON-ISO	PTH05050YAZT vs PTH05050WAZT
PTH05050WAS Match 100%	Texas Instruments DC DC CONVERTER 0.8-3.6V 6A	PTH05050YAZT vs PTH05050WAS

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1250

Shipped from

HK warehouse

Expected Shipping Date

Jul 29 - Aug 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$13.1200~~	~~$13.12~~
250	~~$13.1200~~	~~$3 280.00~~

Current price of PTH05050YAZT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
