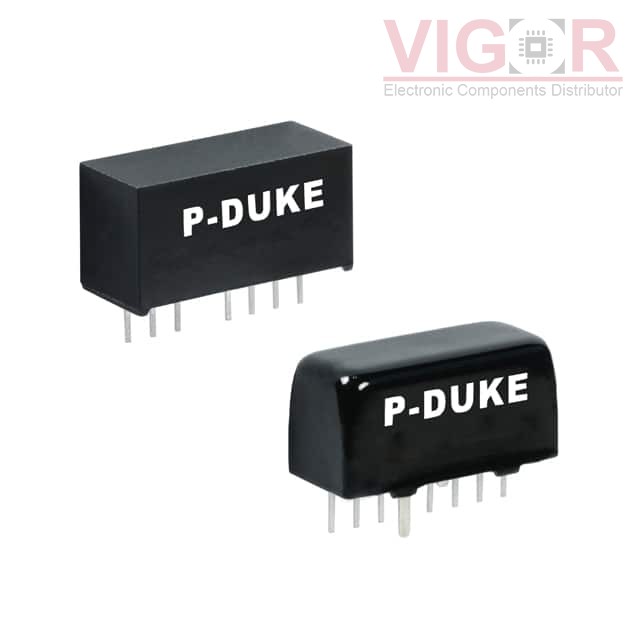

PDL06-05S05

Part No :: PDL06-05S05

Manufacturer: P-Duke Technology, Inc.

VIGOR # :: 4126885

Description: ISOLATED / 6W/ VOUT:5

Catalog: DC DC Converters

DataSheet: PDL06-05S05 PDF

Country of origin: -

Date code: -

PDL06-05S05 Specifications

Type	Description
Series:	PDL06 (6W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.2A
Power (Watts):	6 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off
Operating Temperature:	-40°C ~ 90°C (With Derating)
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	8-SIP Module, 7 Leads
Size / Dimension:	0.86" L x 0.36" W x 0.44" H (21.8mm x 9.1mm x 11.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB, CE, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TEC 3-1211WI Match 50%	TRACO Power DC DC CONVERTER 5V 3W	PDL06-05S05 vs TEC 3-1211WI
TVN 3-0911 Match 50%	TRACO Power DC DC CONVERTER 5V 3W	PDL06-05S05 vs TVN 3-0911
TEC 3-0911 Match 50%	TRACO Power DC DC CONVERTER 5V 3W	PDL06-05S05 vs TEC 3-0911
EDL03-12S05W Match 50%	P-Duke Technology, Inc. DC DC CONVERTER 5V 3W	PDL06-05S05 vs EDL03-12S05W
IZ0505SA Match 50%	XP Power DC DC CONVERTER 5V 3W	PDL06-05S05 vs IZ0505SA
EDL03-05S05 Match 50%	P-Duke Technology, Inc. DC DC CONVERTER 5V 3W	PDL06-05S05 vs EDL03-05S05

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 216

Shipped from

HK warehouse

Expected Shipping Date

Jul 31 - Aug 04 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$19.7300~~	~~$19.73~~

Current price of PDL06-05S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
