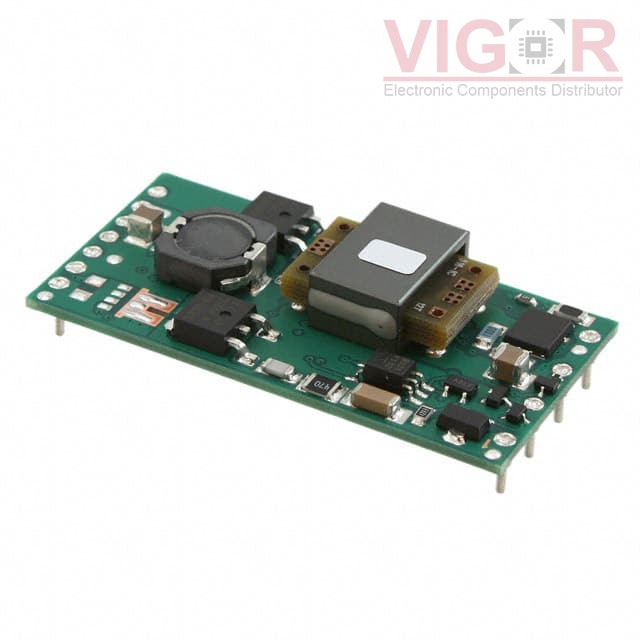

PTB48560CAH

Part No :: PTB48560CAH

Manufacturer: VIGOR

VIGOR # :: 4128805

Description: DC-DC REGULATED POWER SUPPLY MOD

Catalog: DC DC Converters

DataSheet: PTB48560CAH PDF

Country of origin: -

Date code: -

PTB48560CAH Specifications

Type	Description
Series:	PTB48560C (30W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	9 ~ 13.2V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	2.5A
Power (Watts):	10 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output
Operating Temperature:	-40°C ~ 85°C
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module
Size / Dimension:	2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PXF4048WS15 Match 61%	TDK-Lambda, Inc. DC DC CONVERTER 15V 40W	PTB48560CAH vs PXF4048WS15
JTL4048S15 Match 62%	XP Power DC DC CONVERTER 15V 40W	PTB48560CAH vs JTL4048S15
TEN 60-4815 Match 65%	TRACO Power DC DC CONVERTER 24V 60W	PTB48560CAH vs TEN 60-4815
VQE50W-Q48-S24 Match 55%	CUI Inc. DC DC CONVERTER 24V 50W	PTB48560CAH vs VQE50W-Q48-S24
TEN 60-4815WIR Match 53%	TRACO Power DC DC CONVERTER 24V 60W	PTB48560CAH vs TEN 60-4815WIR
TEN 40-4813WI Match 63%	TRACO Power DC DC CONVERTER 15V 40W	PTB48560CAH vs TEN 40-4813WI

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 918

Shipped from

HK warehouse

Expected Shipping Date

Jul 28 - Aug 01 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$68.8700~~	~~$68.87~~
12	~~$68.8700~~	~~$826.44~~

Current price of PTB48560CAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
