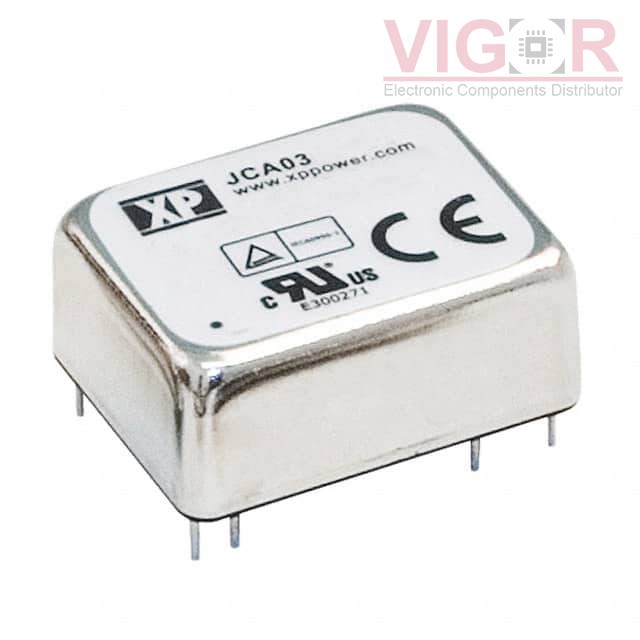

JCA0305S12

Part No :: JCA0305S12

Manufacturer: XP Power

VIGOR # :: 4128944

Description: DC DC CONVERTER 12V 3W

Catalog: DC DC Converters

DataSheet: JCA0305S12 PDF

Country of origin: -

Date code: -

JCA0305S12 Specifications

Type	Description
Series:	JCA (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	260mA
Power (Watts):	3 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 7 Leads
Size / Dimension:	1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
JCD0405S12 Match 80%	XP Power DC DC CONVERTER 12V 4W	JCA0305S12 vs JCD0405S12
JCA0205S12 Match 70%	XP Power DC DC CONVERTER 12V 2W	JCA0305S12 vs JCA0205S12
JCA0405S15 Match 68%	XP Power DC DC CONVERTER 15V 4W	JCA0305S12 vs JCA0405S15
JCD0405S15 Match 70%	XP Power DC DC CONVERTER 15V 4W	JCA0305S12 vs JCD0405S15
JCA0405S12 Match 80%	XP Power DC DC CONVERTER 12V 4W	JCA0305S12 vs JCA0405S12
JCA0305S15 Match 70%	XP Power DC DC CONVERTER 15V 3W	JCA0305S12 vs JCA0305S15

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 813

Shipped from

HK warehouse

Expected Shipping Date

Aug 01 - Aug 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$18.5000~~	~~$18.50~~
5	~~$17.9460~~	~~$89.73~~
10	~~$17.3900~~	~~$173.90~~
25	~~$16.6500~~	~~$416.25~~
100	~~$15.5400~~	~~$1 554.00~~

Current price of JCA0305S12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
