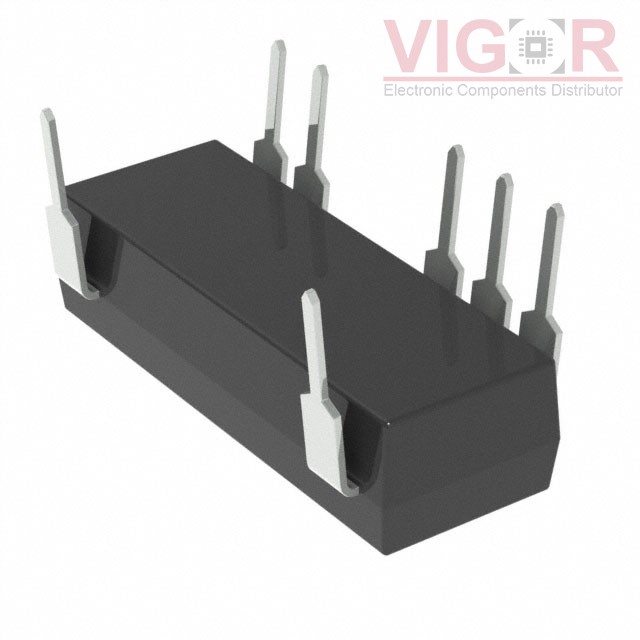

DCP020507P

Part No :: DCP020507P

Manufacturer: Texas Instruments

VIGOR # :: 4130362

Description: DC DC CONVERTER 7V 2W

Catalog: DC DC Converters

DataSheet: DCP020507P PDF

Country of origin: -

Date code: -

DCP020507P Specifications

Type	Description
Series:	DCP02 (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	7V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	286mA
Power (Watts):	2 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	OTP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	14-DIP (0.300", 7.62mm), 7 Leads
Size / Dimension:	0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Supplier Device Package:	7-PDIP
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCP020505P Match 57%	Texas Instruments DC DC CONVERTER 5V 2W	DCP020507P vs DCP020505P
DCP020509P Match 67%	Texas Instruments DC DC CONVERTER 9V 2W	DCP020507P vs DCP020509P

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 832

Shipped from

HK warehouse

Expected Shipping Date

Jul 26 - Jul 30 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$9.7700~~	~~$9.77~~
10	~~$9.6232~~	~~$96.23~~
25	~~$9.4748~~	~~$236.87~~
100	~~$8.2904~~	~~$829.04~~
500	~~$7.9944~~	~~$3 997.17~~

Current price of DCP020507P is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

SUS1R5243R3B

DC DC CONVERTER 3.3V 1.3W

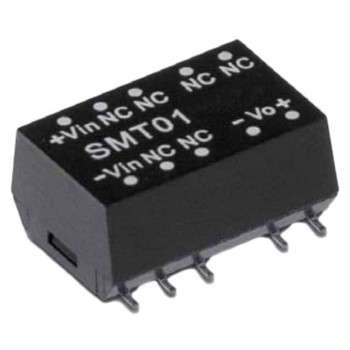

SMT01A-05
