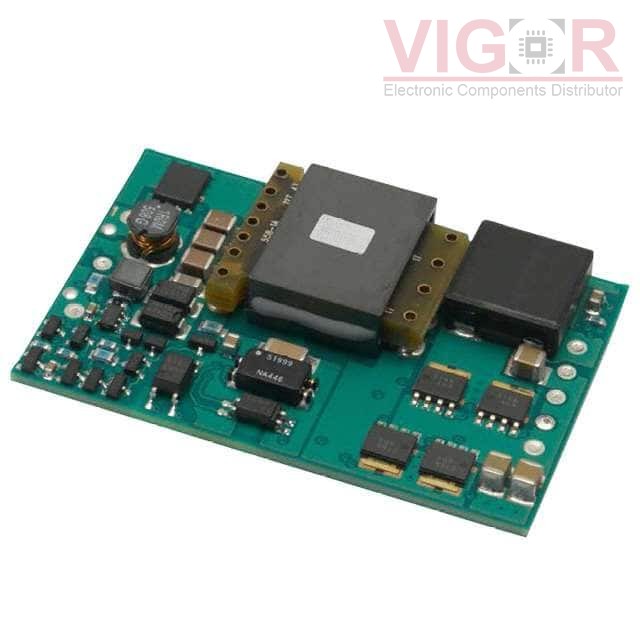

PTQA420050P2AD

Part No :: PTQA420050P2AD

Manufacturer: Texas Instruments

VIGOR # :: 4130888

Description: DC DC CONVERTER 5V 100W

Catalog: DC DC Converters

DataSheet: PTQA420050P2AD PDF

Country of origin: -

Date code: -

PTQA420050P2AD Specifications

Type	Description
Series:	PTQA420050 (100W)
Package:	Tray
Part Status:	Not For New Designs
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	20A
Power (Watts):	100 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	92.5%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 1/4 Brick
Size / Dimension:	2.22" L x 1.45" W x 0.47" H (56.4mm x 36.8mm x 12.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
UQQ-5/20-Q48N-C Match 95%	Murata Power Solutions DC DC CONVERTER 5V 100W	PTQA420050P2AD vs UQQ-5/20-Q48N-C
UQQ-5/20-Q48NB-C Match 95%	Murata Power Solutions DC DC CONVERTER 5V 100W	PTQA420050P2AD vs UQQ-5/20-Q48NB-C
PAQ100S485/B Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 5V 100W	PTQA420050P2AD vs PAQ100S485/B
QBS100ZG-ANT Match 100%	Power-One (Bel Power Solutions) DC DC CONVERTER 5V 100W	PTQA420050P2AD vs QBS100ZG-ANT
PAQ100S485/BV Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 5V 100W	PTQA420050P2AD vs PAQ100S485/BV
PAQ100S485/BPV Match 100%	TDK-Lambda, Inc. DC DC CONVERTER 5V 100W	PTQA420050P2AD vs PAQ100S485/BPV

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 95

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$98.5300~~	~~$98.53~~
18	~~$96.9608~~	~~$1 745.29~~
27	~~$90.7053~~	~~$2 449.04~~
108	~~$83.1986~~	~~$8 985.45~~

Current price of PTQA420050P2AD is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
