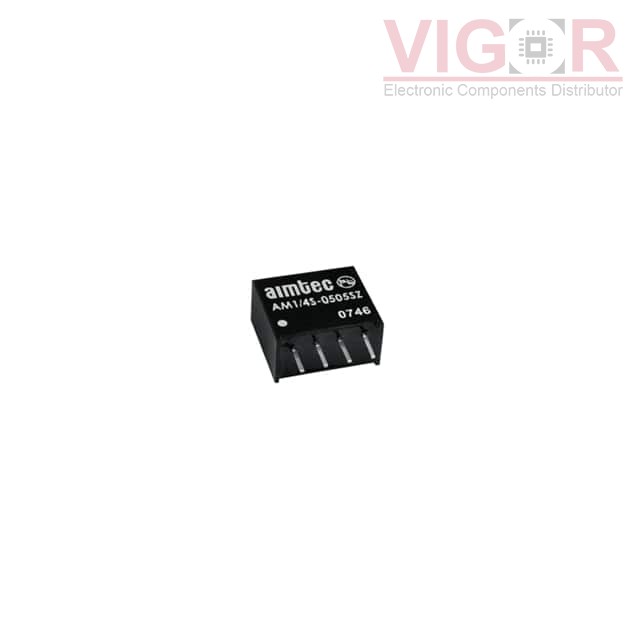

AM1/4S-0505SZ

Part No :: AM1/4S-0505SZ

Manufacturer: DComponents

VIGOR # :: 4131536

Description: DC DC CONVERTER 5V 250MW

Catalog: DC DC Converters

DataSheet: AM1/4S-0505SZ PDF

Country of origin: -

Date code: -

AM1/4S-0505SZ Specifications

Type	Description
Series:	AM1/4S-Z (0.25W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	50mA
Power (Watts):	250 mW
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	71%
Mounting Type:	Through Hole
Package / Case:	4-SIP Module
Size / Dimension:	0.46" L x 0.24" W x 0.40" H (11.7mm x 6.0mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
IK0505SA Match 100%	XP Power DC DC CONVERTER 5V 250MW	AM1/4S-0505SZ vs IK0505SA
RM-0505S Match 100%	RECOM Power DC DC CONVERTER 5V 250MW	AM1/4S-0505SZ vs RM-0505S
RM-0505S/P Match 100%	RECOM Power DC DC CONVERTER 5V 250MW	AM1/4S-0505SZ vs RM-0505S/P
QS4E_0505S1U Match 100%	TE Connectivity AMP Connectors DC-DC	AM1/4S-0505SZ vs QS4E_0505S1U
RM-0505S/H Match 91%	RECOM Power DC DC CONVERTER 5V 250MW	AM1/4S-0505SZ vs RM-0505S/H
AM1/4SS-0505S-NZ Match 95%	DComponents DC DC CONVERTER 5V 250MW	AM1/4S-0505SZ vs AM1/4SS-0505S-NZ
