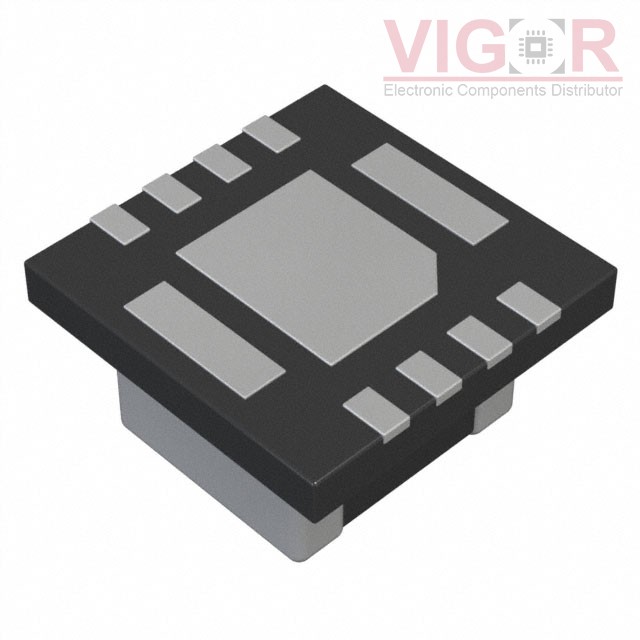

XCL226A0K1H2

Part No :: XCL226A0K1H2

Manufacturer: Torex Semiconductor Ltd.

VIGOR # :: 4131568

Description: DC DC CONVERTER 1-15V

Catalog: DC DC Converters

DataSheet: XCL226A0K1H2 PDF

Country of origin: -

Date code: -

XCL226A0K1H2 Specifications

Type	Description
Series:	XCL226
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	3V
Voltage - Input (Max):	18V
Voltage - Output 1:	1 ~ 15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 105°C
Efficiency:	82%
Mounting Type:	Surface Mount
Package / Case:	10-PowerLFDFN Module
Size / Dimension:	0.12" L x 0.12" W x 0.07" H (3.0mm x 3.0mm x 1.7mm)
Supplier Device Package:	DFN3030-10B
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
MYRGC075050S31RA Match 100%	Murata Power Solutions DC DC CONVERTER 0.75V	XCL226A0K1H2 vs MYRGC075050S31RA
XCL225B0K1H2 Match 100%	Torex Semiconductor Ltd. DC DC CONVERTER 1-15V	XCL226A0K1H2 vs XCL225B0K1H2
XCL225A0K1H2 Match 100%	Torex Semiconductor Ltd. DC DC CONVERTER 1-15V	XCL226A0K1H2 vs XCL225A0K1H2
MYRGC075050R31RA Match 100%	Murata Power Solutions DC DC CONVERTER 0.75V	XCL226A0K1H2 vs MYRGC075050R31RA
MYRGC075050P31RA Match 100%	Murata Power Solutions DC DC CONVERTER 0.75V	XCL226A0K1H2 vs MYRGC075050P31RA
XCL226B0K1H2 Match 100%	Torex Semiconductor Ltd. DC DC CONVERTER 1-15V	XCL226A0K1H2 vs XCL226B0K1H2

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1209

Shipped from

HK warehouse

Expected Shipping Date

Aug 01 - Aug 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.7400~~	~~$2.74~~
3000	~~$1.1812~~	~~$3 543.75~~

Current price of XCL226A0K1H2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
