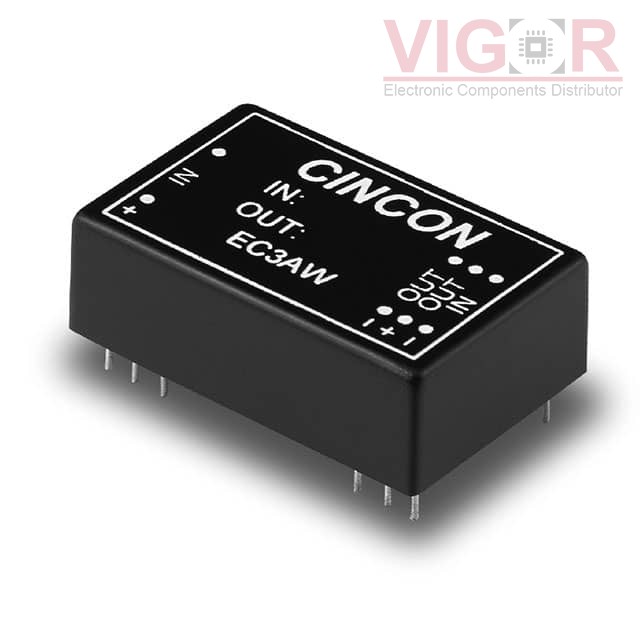

EC3AW01H

Part No :: EC3AW01H

Manufacturer: Cincon

VIGOR # :: 4131589

Description: DC DC CONVERTER 5V 3W

Catalog: DC DC Converters

DataSheet: EC3AW01H PDF

Country of origin: -

Date code: -

EC3AW01H Specifications

Type	Description
Series:	EC3AW (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	600mA
Power (Watts):	3 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-25°C ~ 71°C
Efficiency:	72%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 14 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
JTB0524S05 Match 54%	XP Power DC DC CONVERTER 5V 5W	EC3AW01H vs JTB0524S05
EC4AW01H Match 63%	Cincon DC DC CONVERTER 5V 5W	EC3AW01H vs EC4AW01H
EC3AW01 Match 86%	Cincon DC DC CONVERTER 5V 3W	EC3AW01H vs EC3AW01
JTB0324S05 Match 91%	XP Power DC DC CONVERTER 5V 3W	EC3AW01H vs JTB0324S05
EC3AW01HM Match 91%	Cincon DC DC CONVERTER 5V 3W	EC3AW01H vs EC3AW01HM
EC3AW01M Match 86%	Cincon DC DC CONVERTER 5V 3W	EC3AW01H vs EC3AW01M

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 260

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.9600~~	~~$12.96~~
5	~~$12.8295~~	~~$64.15~~
10	~~$12.7020~~	~~$127.02~~
25	~~$12.4482~~	~~$311.21~~
50	~~$12.0747~~	~~$603.73~~
100	~~$11.5916~~	~~$1 159.16~~

Current price of EC3AW01H is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

RP60-2412SG

DC DC CONVERTER 12V 60W

V48C15M150BL

DC DC CONVERTER 15V 150W

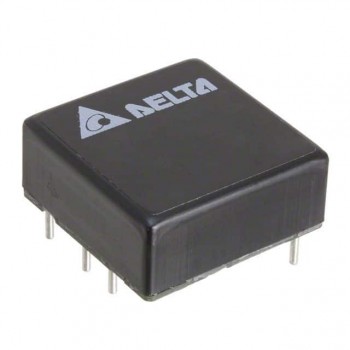

S24SE3R306PDFA
