AMSRB1-7809JZ

Part No :: AMSRB1-7809JZ

Manufacturer: DComponents

VIGOR # :: 4132375

Description: DC DC CONVERTER 9V 9W

Catalog: DC DC Converters

DataSheet: AMSRB1-7809JZ PDF

Country of origin: -

Date code: -

AMSRB1-7809JZ Specifications

Type	Description
Series:	AMSRB1-78JZ (15W)
Package:	Tube
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	13V
Voltage - Input (Max):	36V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1A
Power (Watts):	9 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	94%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.46" L x 0.31" W x 0.41" H (11.6mm x 8.0mm x 10.4mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
K7809M-1000R3 Match 100%	Mornsun DC DC CONVERTER 9V 9W	AMSRB1-7809JZ vs K7809M-1000R3
AMSRI1-7809L-NZ Match 100%	DComponents DC DC CONVERTER 9V 9W	AMSRB1-7809JZ vs AMSRI1-7809L-NZ
AMSRI1-7809-NZ Match 100%	DComponents DC DC CONVERTER 9V 9W	AMSRB1-7809JZ vs AMSRI1-7809-NZ
LMP78_09-1.0R Match 100%	TE Connectivity AMP Connectors DC-DC POL	AMSRB1-7809JZ vs LMP78_09-1.0R
PSR1.0-9P0 Match 100%	P-Duke Technology, Inc. NON-ISOLATED / 1A/ VOUT:9	AMSRB1-7809JZ vs PSR1.0-9P0
LME78_09-1.0 Match 100%	TE Connectivity AMP Connectors DC-DC POL	AMSRB1-7809JZ vs LME78_09-1.0

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 946

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.8700~~	~~$2.87~~

Current price of AMSRB1-7809JZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

VI-J3F-CX-F4

DC DC CONVERTER 72V 75W

AM75QB-4824SH22-NZ-192

DC DC CONVERTER 24V 75W

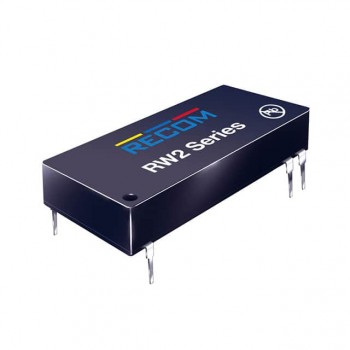

RW2-0509D/H3
