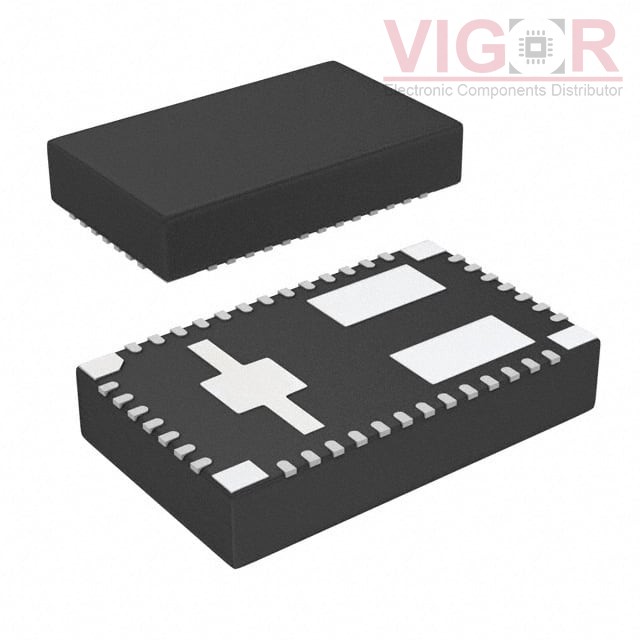

LMZ31503RUQT

Part No :: LMZ31503RUQT

Manufacturer: Texas Instruments

VIGOR # :: 4133897

Description: DC DC CONVERTER 0.8-5.5V 17W

Catalog: DC DC Converters

DataSheet: LMZ31503RUQT PDF

Country of origin: -

Date code: -

LMZ31503RUQT Specifications

Type	Description
Series:	SIMPLE SWITCHER®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	14.5V
Voltage - Output 1:	0.8 ~ 5.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	93.3%
Mounting Type:	Surface Mount
Package / Case:	47-BQFN Module
Size / Dimension:	0.60" L x 0.36" W x 0.11" H (15.2mm x 9.2mm x 2.9mm)
Supplier Device Package:	47-B1QFN (15x9)
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
TPS84320RUQT Match 100%	Texas Instruments DC DC CONVERTER 0.8-5.5V	LMZ31503RUQT vs TPS84320RUQT
TPS84320RUQR Match 100%	Texas Instruments DC DC CONVERTER 0.8-5.5V	LMZ31503RUQT vs TPS84320RUQR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 2937

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.5500~~	~~$7.55~~
250	~~$6.4545~~	~~$1 613.63~~
500	~~$6.0242~~	~~$3 012.10~~

Current price of LMZ31503RUQT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

AM3TIW-2415D-RZ

DC DC CONVERTER 15V -15V 3W

RJZ-1512S

DC DC CONVERTER 12V 2W

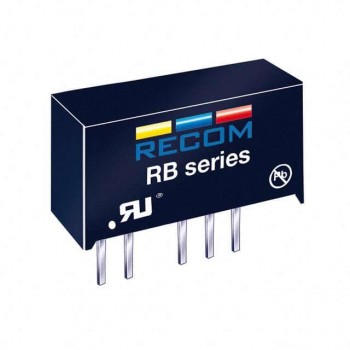

RB-2409S/H
