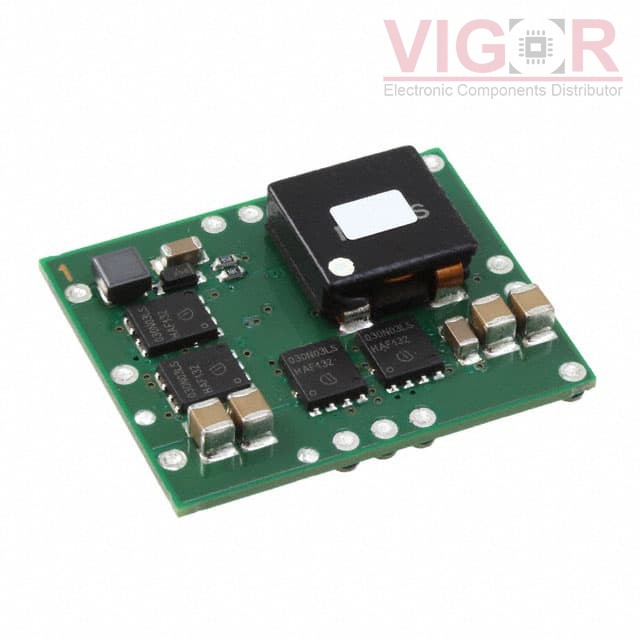

PTH03030WAS

Part No :: PTH03030WAS

Manufacturer: VIGOR

VIGOR # :: 4134667

Description: DC-DC POWER SUPPLY MODULE

Catalog: DC DC Converters

DataSheet: PTH03030WAS PDF

Country of origin: -

Date code: -

PTH03030WAS Specifications

Type	Description
Series:	PTH03030W (75W)
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	2.95V
Voltage - Input (Max):	3.65V
Voltage - Output 1:	0.8 ~ 2.5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	30A
Power (Watts):	75 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OTP, SCP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	93%
Mounting Type:	Surface Mount
Package / Case:	13-SMD Module
Size / Dimension:	1.37" L x 1.12" W x 0.35" H (34.8mm x 28.4mm x 8.9mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTH03030WAST Match 100%	VIGOR DC-DC POWER SUPPLY MODULE	PTH03030WAS vs PTH03030WAST
PTH03030WAZ Match 100%	Texas Instruments DC DC CONVERTER 0.8-2.5V 75W	PTH03030WAS vs PTH03030WAZ
MPDTH03030WAS Match 100%	Murata Power Solutions DC DC CONVERTER 0.8-2.5V 75W	PTH03030WAS vs MPDTH03030WAS
PTH03030WAZT Match 100%	VIGOR PTH03030W 30 A, 3.3-V INPUT WIDE	PTH03030WAS vs PTH03030WAZT
PMJ4718TSR Match 100%	Flex Power Modules DC DC CONVERTER 0.8-2.5V 75W	PTH03030WAS vs PMJ4718TSR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1377

Shipped from

HK warehouse

Expected Shipping Date

Aug 01 - Aug 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$24.4800~~	~~$24.48~~

Current price of PTH03030WAS is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

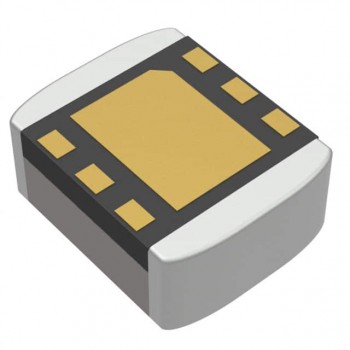

XCL103D503CR-G
