AM1D-0524SH52Z

Part No :: AM1D-0524SH52Z

Manufacturer: DComponents

VIGOR # :: 4135670

Description: DC DC CONVERTER 24V 1W

Catalog: DC DC Converters

DataSheet: AM1D-0524SH52Z PDF

Country of origin: -

Date code: -

AM1D-0524SH52Z Specifications

Type	Description
Series:	AM1D-Z (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	42mA
Power (Watts):	1 W
Voltage - Isolation:	5.2 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.76" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE, cULus, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RP-0524S/P Match 100%	RECOM Power DC DC CONVERTER 24V 1W	AM1D-0524SH52Z vs RP-0524S/P
PEM1-S5-S24-S Match 93%	CUI Inc. DC DC CONVERTER 24V 1W	AM1D-0524SH52Z vs PEM1-S5-S24-S
AM1D-0524SH60Z Match 98%	DComponents DC DC CONVERTER 24V 1W	AM1D-0524SH52Z vs AM1D-0524SH60Z
RP-0524S/P/X2 Match 100%	RECOM Power DC DC CONVERTER 24V 1W	AM1D-0524SH52Z vs RP-0524S/P/X2
RP-0524S Match 100%	RECOM Power DC DC CONVERTER 24V 1W	AM1D-0524SH52Z vs RP-0524S
AM1D-0524SH40Z Match 97%	DComponents DC DC CONVERTER 24V 1W	AM1D-0524SH52Z vs AM1D-0524SH40Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 84

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$7.6600~~	~~$7.66~~

Current price of AM1D-0524SH52Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

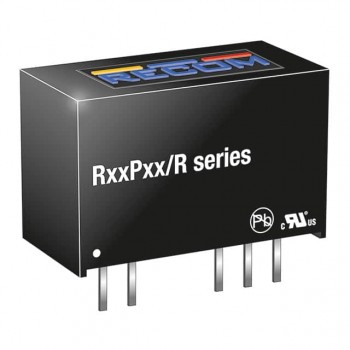

R09P09D/R6.4
