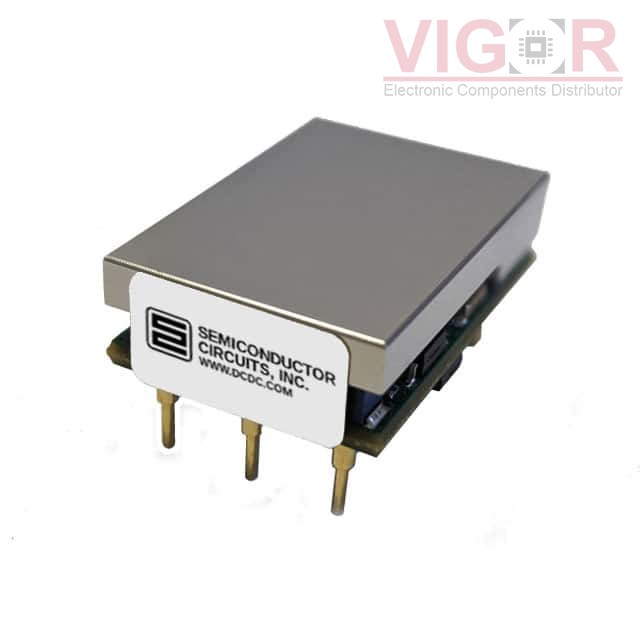

CPT15A24NB

Part No :: CPT15A24NB

Manufacturer: Semiconductor Circuits, Inc.

VIGOR # :: 4136443

Description: 5V 15A 18-36VIN 16TH NEG ENB W/B

Catalog: DC DC Converters

DataSheet: CPT15A24NB PDF

Country of origin: -

Date code: -

CPT15A24NB Specifications

Type	Description
Series:	CPT
Package:	Tray
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	15A
Power (Watts):	75 W
Voltage - Isolation:	2.25 kV
Applications:	ITE (Commercial)
Features:	Adjustable Output, Baseplate, Remote On/Off, Remote Sense
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	93%
Mounting Type:	Through Hole
Package / Case:	Sixteenth Brick
Size / Dimension:	1.30" L x 0.90" W x 0.50" H (33.0mm x 22.9mm x 12.7mm)
Supplier Device Package:	Sixteenth Brick
Control Features:	Enable, Active Low
Approval Agency:	CSA, TUV, UL
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
CPT15F36N Match 52%	Semiconductor Circuits, Inc. DC DC CONVERTER 3.3V 50W	CPT15A24NB vs CPT15F36N
SRS3033N015N25W Match 52%	NetPower Corporation DC DC CONVERTER 3.3V 50W	CPT15A24NB vs SRS3033N015N25W
PKU5510SPI Match 52%	Flex Power Modules DC DC CONVERTER 3.3V 50W	CPT15A24NB vs PKU5510SPI
CPT15A24N Match 100%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 75W	CPT15A24NB vs CPT15A24N
CPT15F36NB Match 52%	Semiconductor Circuits, Inc. 3V3 15A 18-72VIN 16TH NEG ENB W/	CPT15A24NB vs CPT15F36NB
CPT15A24PB Match 100%	Semiconductor Circuits, Inc. 5V 15A 18-36VIN 16TH POS ENB W/B	CPT15A24NB vs CPT15A24PB

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1230

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$36.8200~~	~~$36.82~~

Current price of CPT15A24NB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
