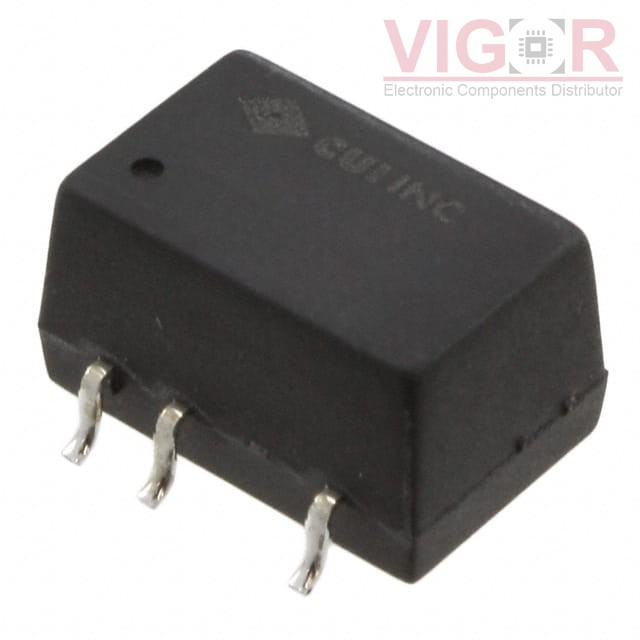

PES1-S24-S5-M

Part No :: PES1-S24-S5-M

Manufacturer: CUI Inc.

VIGOR # :: 4136807

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: PES1-S24-S5-M PDF

Country of origin: -

Date code: -

PES1-S24-S5-M Specifications

Type	Description
Series:	PES1-M (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	80%
Mounting Type:	Surface Mount
Package / Case:	8-SMD Module, 5 Leads
Size / Dimension:	0.50" L x 0.32" W x 0.29" H (12.8mm x 8.2mm x 7.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	EN, UL
Standard Number:	55024; 55032 Class A; 60950-1

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1LS-2405SH30-NZ Match 100%	DComponents DC DC CONVERTER 5V 1W	PES1-S24-S5-M vs AM1LS-2405SH30-NZ
AM1LS-2405SH30-NZTR Match 100%	DComponents DC DC CONVERTER 5V 1W	PES1-S24-S5-M vs AM1LS-2405SH30-NZTR
PES1-S24-S5-M-TR Match 100%	CUI Inc. DC DC CONVERTER 5V 1W	PES1-S24-S5-M vs PES1-S24-S5-M-TR
ISE2405A-H Match 100%	XP Power DC DC CONVERTER 5V 1W	PES1-S24-S5-M vs ISE2405A-H
F2405XT-1WR3-TR Match 100%	Mornsun DC DC CONVERTER 5V 1W	PES1-S24-S5-M vs F2405XT-1WR3-TR
F2405XT-1WR3 Match 100%	Mornsun DC DC CONVERTER 5V 1W	PES1-S24-S5-M vs F2405XT-1WR3
