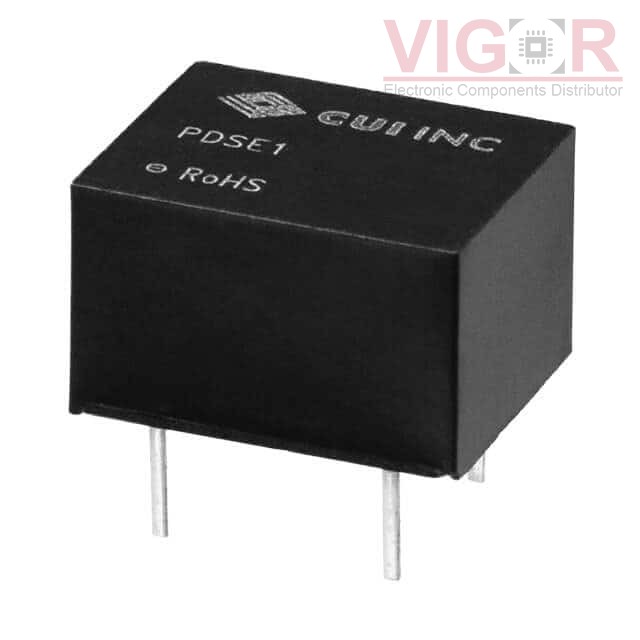

PDSE1-S5-S15-D

Part No :: PDSE1-S5-S15-D

Manufacturer: CUI Inc.

VIGOR # :: 4137128

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: PDSE1-S5-S15-D PDF

Country of origin: -

Date code: -

PDSE1-S5-S15-D Specifications

Type	Description
Series:	PDSE1-D (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	67mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	83%
Mounting Type:	Through Hole
Package / Case:	8-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.40" W x 0.32" H (12.7mm x 10.2mm x 8.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
PDSE1-S5-S12-D Match 71%	CUI Inc. DC DC CONVERTER 12V 1W	PDSE1-S5-S15-D vs PDSE1-S5-S12-D
