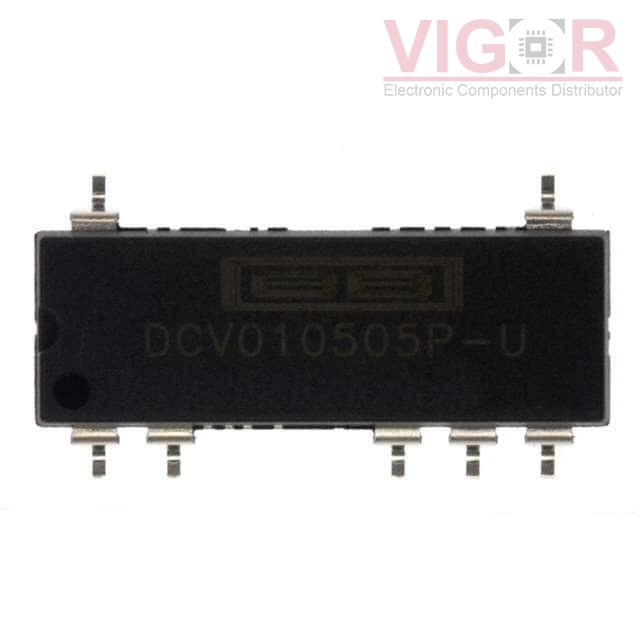

DCV010505P-U

Part No :: DCV010505P-U

Manufacturer: Texas Instruments

VIGOR # :: 4137362

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: DCV010505P-U PDF

Country of origin: -

Date code: -

DCV010505P-U Specifications

Type	Description
Series:	DCV01 (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	78%
Mounting Type:	Surface Mount
Package / Case:	14-SMD Module, 7 Leads
Size / Dimension:	0.78" L x 0.33" W x 0.21" H (19.7mm x 8.3mm x 5.3mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCP010505BP-U Match 95%	Texas Instruments DC DC CONVERTER 5V 1W	DCV010505P-U vs DCP010505BP-U
ISB0105S05 Match 100%	XP Power DC DC CONVERTER 5V 1W	DCV010505P-U vs ISB0105S05
DCP010505BP-U/700 Match 95%	Texas Instruments DC DC CONVERTER 5V 1W	DCV010505P-U vs DCP010505BP-U/700
DCP010505BP-UG4 Match 95%	Texas Instruments DC DC CONVERTER 5V 1W	DCV010505P-U vs DCP010505BP-UG4
DCV010505P-U/700 Match 100%	Texas Instruments DC DC CONVERTER 5V 1W	DCV010505P-U vs DCV010505P-U/700
AM1LT-0505S-NZTR Match 100%	DComponents DC DC CONVERTER 5V 1W	DCV010505P-U vs AM1LT-0505S-NZTR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 654

Shipped from

HK warehouse

Expected Shipping Date

Aug 02 - Aug 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$10.0100~~	~~$10.01~~
10	~~$9.8533~~	~~$98.53~~
25	~~$9.7018~~	~~$242.55~~
100	~~$8.4891~~	~~$848.91~~
500	~~$8.1859~~	~~$4 092.96~~

Current price of DCV010505P-U is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
