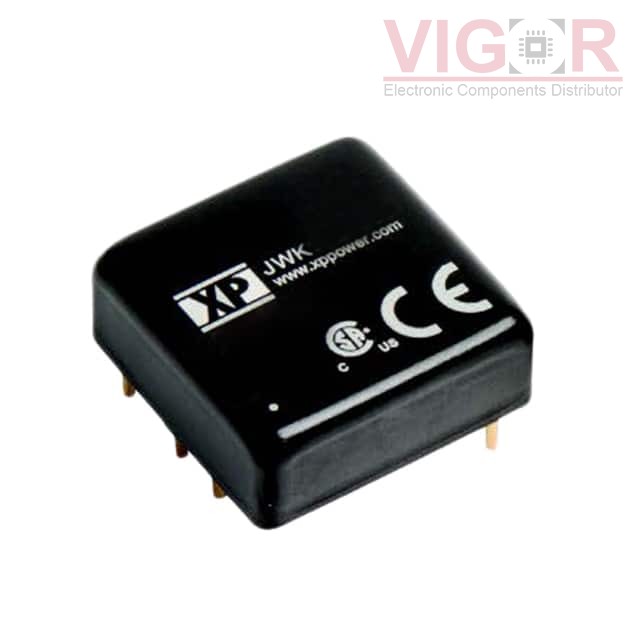

JSM2512S05

Part No :: JSM2512S05

Manufacturer: XP Power

VIGOR # :: 4137603

Description: DC DC CONVERTER 5V 25W

Catalog: DC DC Converters

DataSheet: JSM2512S05 PDF

Country of origin: -

Date code: -

JSM2512S05 Specifications

Type	Description
Series:	JSM25 (25W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	9V
Voltage - Input (Max):	18V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	25 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	89%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module, 5 Leads
Size / Dimension:	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
RPA30-2405SAW Match 86%	RECOM Power DC DC CONVERTER 5V 30W	JSM2512S05 vs RPA30-2405SAW
REM30-2405SW Match 73%	RECOM Power DC DC CONVERTER 5V 30W	JSM2512S05 vs REM30-2405SW
MPD30-12S05 Match 73%	P-Duke Technology, Inc. ISOLATED / 30W/ VOUT:5	JSM2512S05 vs MPD30-12S05
MPD30-24S05W Match 73%	P-Duke Technology, Inc. ISOLATED / 30W/ VOUT:5	JSM2512S05 vs MPD30-24S05W
RPA30-2405SAW-HC Match 86%	RECOM Power DC DC CONVERTER 5V 30W	JSM2512S05 vs RPA30-2405SAW-HC
REM20-2405SW Match 70%	RECOM Power DC DC CONVERTER 5V 20W	JSM2512S05 vs REM20-2405SW

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 608

Shipped from

HK warehouse

Expected Shipping Date

Nov 04 - Nov 08 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$41.0000~~	~~$41.00~~
5	~~$39.7700~~	~~$198.85~~
10	~~$38.5400~~	~~$385.40~~
25	~~$36.9000~~	~~$922.50~~
100	~~$34.6450~~	~~$3 464.50~~

Current price of JSM2512S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
