JCJ0824D15

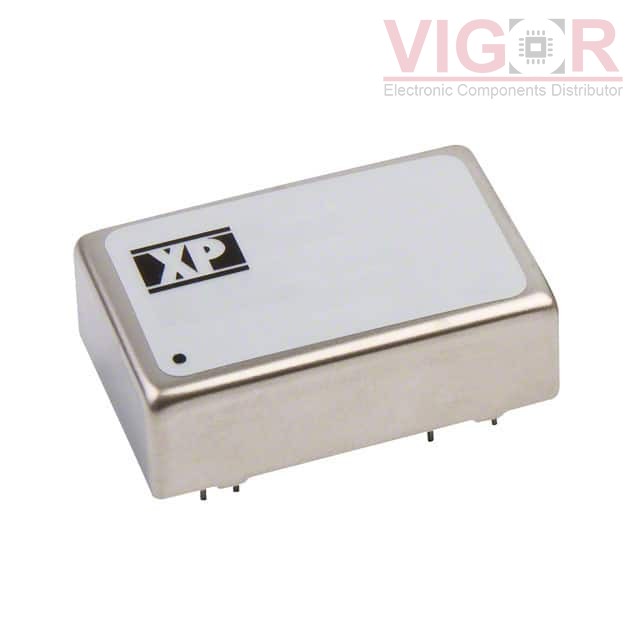

Image is for reference,
please contact us to get the real picture

Part No :: JCJ0824D15

Manufacturer: XP Power

Description: DC DC CONVERTER +/-15V 8W

Catalog: DC DC Converters

DataSheet: JCJ0824D15 PDF

Availability: 66 pieces

Unit Price: ~~$25.00000~~

Current price of JCJ0824D15 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

JCJ0824D15 Specifications

Type	Description
Series:	JCJ (8W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-15V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	265mA, 265mA
Power (Watts):	8 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	85%
Mounting Type:	Through Hole
Package / Case:	11-DIP Module, 8 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1
