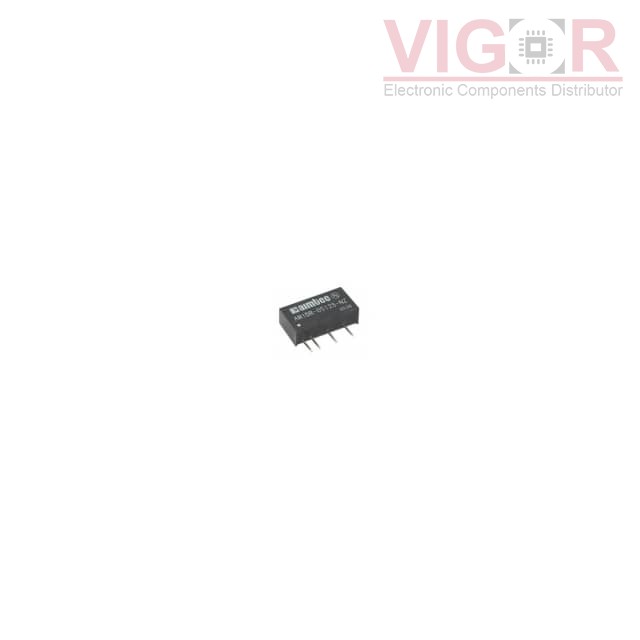

AM1DR-0524SH30-NZ

Part No :: AM1DR-0524SH30-NZ

Manufacturer: DComponents

VIGOR # :: 4140452

Description: DC DC CONVERTER 24V 1W

Catalog: DC DC Converters

DataSheet: AM1DR-0524SH30-NZ PDF

Country of origin: -

Date code: -

AM1DR-0524SH30-NZ Specifications

Type	Description
Series:	AM1DR-NZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.75V
Voltage - Input (Max):	5.25V
Voltage - Output 1:	24V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	41mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 71°C (With Derating)
Efficiency:	73%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.37" H (19.6mm x 6.0mm x 9.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	cULus, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RP-0524S/X2 Match 92%	RECOM Power DC DC CONVERTER 24V 1W	AM1DR-0524SH30-NZ vs RP-0524S/X2
PRMCE1-S5-S24-S Match 100%	CUI Inc. DC DC CONVERTER 24V 984MW	AM1DR-0524SH30-NZ vs PRMCE1-S5-S24-S
RP-0524S/P Match 92%	RECOM Power DC DC CONVERTER 24V 1W	AM1DR-0524SH30-NZ vs RP-0524S/P
AM1DR-0524SJZ Match 91%	DComponents DC DC CONVERTER 24V 1W	AM1DR-0524SH30-NZ vs AM1DR-0524SJZ
PEME1-S5-S24-S Match 99%	CUI Inc. DC DC CONVERTER 24V 1W	AM1DR-0524SH30-NZ vs PEME1-S5-S24-S
PEM1-S5-S24-S Match 99%	CUI Inc. DC DC CONVERTER 24V 1W	AM1DR-0524SH30-NZ vs PEM1-S5-S24-S
