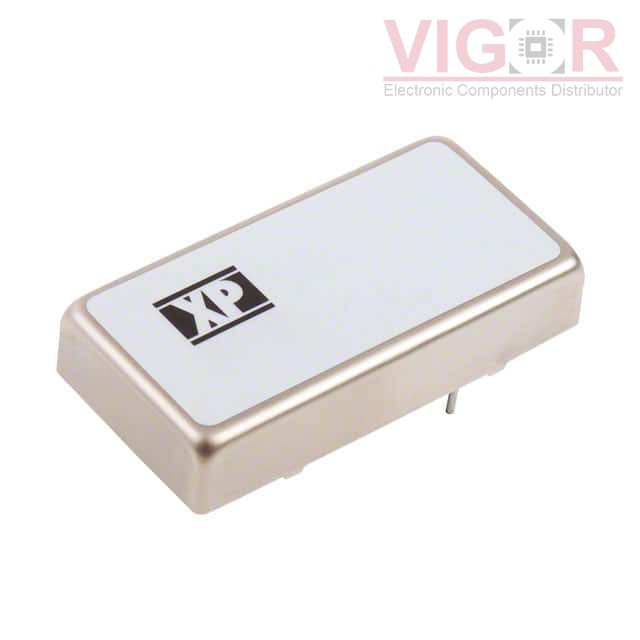

JTH1548S05

Part No :: JTH1548S05

Manufacturer: XP Power

VIGOR # :: 4141906

Description: DC DC CONVERTER 5V 15W

Catalog: DC DC Converters

DataSheet: JTH1548S05 PDF

Country of origin: -

Date code: -

JTH1548S05 Specifications

Type	Description
Series:	JTH (15W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	72V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	15 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	OCP, OVP, SCP, UVLO
Operating Temperature:	-40°C ~ 100°C
Efficiency:	83%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
LCD15-48S05W Match 99%	P-Duke Technology, Inc. DC DC CONVERTER 5V 15W	JTH1548S05 vs LCD15-48S05W
URB4805YMD-15WR3 Match 100%	Mornsun DC DC CONVERTER 5V 15W	JTH1548S05 vs URB4805YMD-15WR3
CP15C1130036N Match 99%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 15W	JTH1548S05 vs CP15C1130036N
CP15B1130036P Match 95%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 15W	JTH1548S05 vs CP15B1130036P
CP15B1130036N Match 95%	Semiconductor Circuits, Inc. DC DC CONVERTER 5V 15W	JTH1548S05 vs CP15B1130036N
REC15E-4805SZ Match 96%	RECOM Power DC DC CONVERTER 5V 15W	JTH1548S05 vs REC15E-4805SZ

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1160

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$37.6000~~	~~$37.60~~
10	~~$37.6000~~	~~$376.00~~

Current price of JTH1548S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

RV-1515D/P/R8

DC DC CONVERTER +/-15V 2W

REC3-0515SRW/H2/C

DC DC CONVERTER 15V 3W

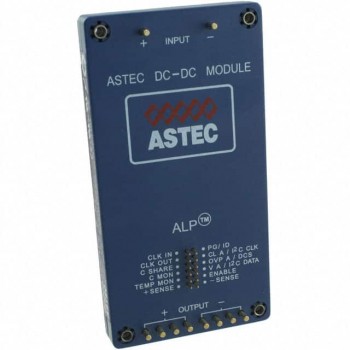

AIF50B300-NTL
