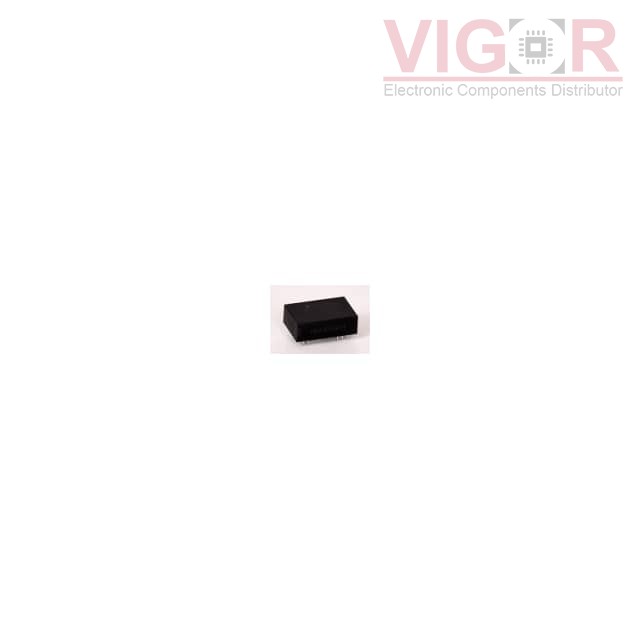

AM3T-0515SH30-PNZ

Part No :: AM3T-0515SH30-PNZ

Manufacturer: DComponents

VIGOR # :: 4142108

Description: DC DC CONVERTER 15V 3W

Catalog: DC DC Converters

DataSheet: AM3T-0515SH30-PNZ PDF

Country of origin: -

Date code: -

AM3T-0515SH30-PNZ Specifications

Type	Description
Series:	AM3T-PNZ (3W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	3 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	77%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 10 Leads
Size / Dimension:	1.24" L x 0.80" W x 0.40" H (31.6mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PQB3-D5-S12-D Match 62%	CUI Inc. DC DC CONVERTER 12V 3W	AM3T-0515SH30-PNZ vs PQB3-D5-S12-D
AM3T-0512SH30-PNZ Match 71%	DComponents DC DC CONVERTER 12V 3W	AM3T-0515SH30-PNZ vs AM3T-0512SH30-PNZ
PQB3-D5-S15-D Match 91%	CUI Inc. DC DC CONVERTER 15V 3W	AM3T-0515SH30-PNZ vs PQB3-D5-S15-D
PVB3-D5-S15-D Match 100%	CUI Inc. DC DC CONVERTER 15V 3W	AM3T-0515SH30-PNZ vs PVB3-D5-S15-D
PVB3-D5-S12-D Match 71%	CUI Inc. DC DC CONVERTER 12V 3W	AM3T-0515SH30-PNZ vs PVB3-D5-S12-D
AM3T-0515S-PNZ Match 91%	DComponents DC DC CONVERTER 15V 3W	AM3T-0515SH30-PNZ vs AM3T-0515S-PNZ

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1000

Shipped from

HK warehouse

Expected Shipping Date

Aug 14 - Aug 18 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.3900~~	~~$12.39~~

Current price of AM3T-0515SH30-PNZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
