JSM2548S05

Part No :: JSM2548S05

Manufacturer: XP Power

VIGOR # :: 4142848

Description: DC DC CONVERTER 5V 25W

Catalog: DC DC Converters

DataSheet: JSM2548S05 PDF

Country of origin: -

Date code: -

JSM2548S05 Specifications

Type	Description
Series:	JSM25 (25W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	5A
Power (Watts):	25 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	90%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module, 5 Leads
Size / Dimension:	1.00" L x 1.00" W x 0.40" H (25.4mm x 25.4mm x 10.2mm)
Supplier Device Package:	-
Control Features:	Enable, Active High
Approval Agency:	-
Standard Number:	62368-1

Alternative Products

Part Number	Manufacturer & Description	Compare
MPM20-48S05 Match 70%	P-Duke Technology, Inc. ISOLATED / 20W/ VOUT:5	JSM2548S05 vs MPM20-48S05
MPD30-48S05W Match 73%	P-Duke Technology, Inc. ISOLATED / 30W/ VOUT:5	JSM2548S05 vs MPD30-48S05W
REM20-4805SW Match 70%	RECOM Power DC DC CONVERTER 5V 20W	JSM2548S05 vs REM20-4805SW
REM30-4805SW Match 73%	RECOM Power DC DC CONVERTER 5V 30W	JSM2548S05 vs REM30-4805SW
MPD30-48S05 Match 73%	P-Duke Technology, Inc. ISOLATED / 30W/ VOUT:5	JSM2548S05 vs MPD30-48S05
MPM20-48S05W Match 70%	P-Duke Technology, Inc. ISOLATED / 20W/ VOUT:5	JSM2548S05 vs MPM20-48S05W

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 166

Shipped from

HK warehouse

Expected Shipping Date

Jul 29 - Aug 02 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$41.0000~~	~~$41.00~~
5	~~$39.7700~~	~~$198.85~~
10	~~$38.5400~~	~~$385.40~~
25	~~$36.9000~~	~~$922.50~~
100	~~$34.6450~~	~~$3 464.50~~

Current price of JSM2548S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

REC5-0512DRW/H6/A/SMD

DC DC CONVERTER +/-12V 5W

UWQ-12/20-T48NB-C

DC DC CONVERTER 12V 240W

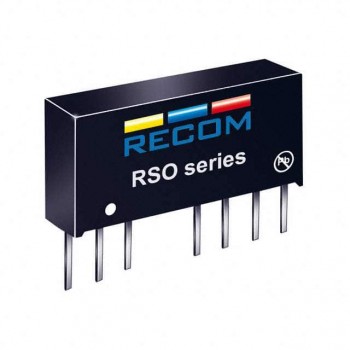

RSO-1205D/H3
