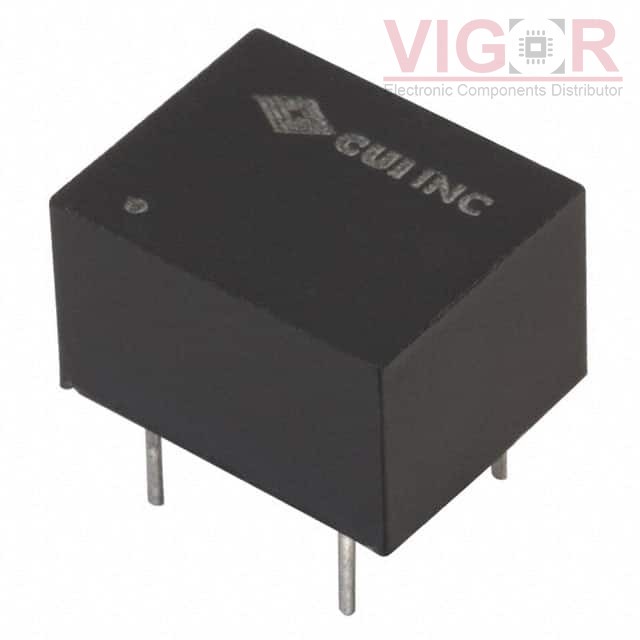

PDS1-S12-S12-D

Part No :: PDS1-S12-S12-D

Manufacturer: CUI Inc.

VIGOR # :: 4143229

Description: DC DC CONVERTER 12V 1W

Catalog: DC DC Converters

DataSheet: PDS1-S12-S12-D PDF

Country of origin: -

Date code: -

PDS1-S12-S12-D Specifications

Type	Description
Series:	PDS1-D (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	83mA
Power (Watts):	1 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C
Efficiency:	81%
Mounting Type:	Through Hole
Package / Case:	7-DIP Module, 4 Leads
Size / Dimension:	0.50" L x 0.39" W x 0.30" H (12.8mm x 10.0mm x 7.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 60950-1

Alternative Products

Part Number	Manufacturer & Description	Compare
B1212D-1WR3 Match 100%	Mornsun DC DC CONVERTER 12V 1W	PDS1-S12-S12-D vs B1212D-1WR3
PDS1-S12-S15-D Match 72%	CUI Inc. DC DC CONVERTER 15V 1W	PDS1-S12-S12-D vs PDS1-S12-S15-D
PDS1-S12-S9-D Match 63%	CUI Inc. DC DC CONVERTER 9V 1W	PDS1-S12-S12-D vs PDS1-S12-S9-D
B1215D-1WR3 Match 72%	Mornsun DC DC CONVERTER 15V 1W	PDS1-S12-S12-D vs B1215D-1WR3
F1212N-1WR3 Match 91%	Mornsun DC DC CONVERTER 12V 1W	PDS1-S12-S12-D vs F1212N-1WR3
F1215N-1WR3 Match 63%	Mornsun DC DC CONVERTER 15V 1W	PDS1-S12-S12-D vs F1215N-1WR3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 249

Shipped from

HK warehouse

Expected Shipping Date

Jul 21 - Jul 25 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$4.3100~~	~~$4.31~~
5	~~$4.2440~~	~~$21.22~~
10	~~$4.1820~~	~~$41.82~~
40	~~$4.0590~~	~~$162.36~~
80	~~$3.9360~~	~~$314.88~~
120	~~$3.8130~~	~~$457.56~~
280	~~$3.6900~~	~~$1 033.20~~
520	~~$3.4440~~	~~$1 790.88~~

Current price of PDS1-S12-S12-D is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
