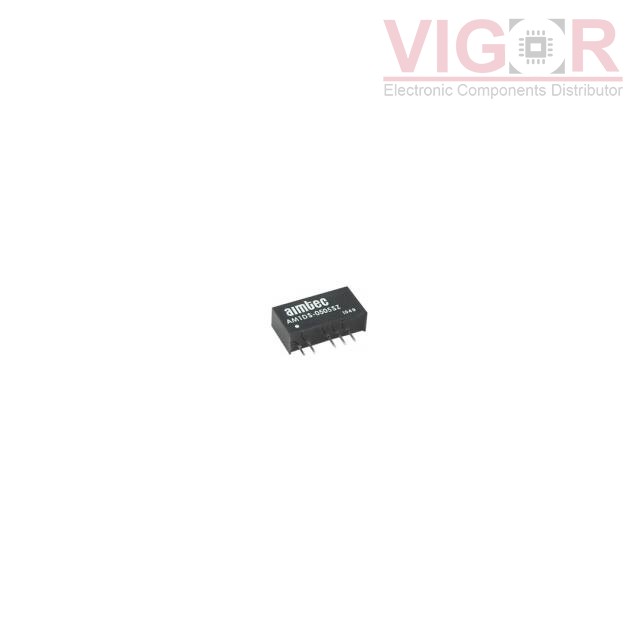

AM1DS-1215SH52Z

Part No :: AM1DS-1215SH52Z

Manufacturer: DComponents

VIGOR # :: 4145404

Description: DC DC CONVERTER 15V 1W

Catalog: DC DC Converters

DataSheet: AM1DS-1215SH52Z PDF

Country of origin: -

Date code: -

AM1DS-1215SH52Z Specifications

Type	Description
Series:	AM1DS-Z (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	66.7mA
Power (Watts):	1 W
Voltage - Isolation:	5.2 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1DC-1215SH60Z Match 98%	DComponents DC DC CONVERTER 15V 1W	AM1DS-1215SH52Z vs AM1DC-1215SH60Z
AM1DS-1215SH40Z Match 97%	DComponents DC DC CONVERTER 15V 1W	AM1DS-1215SH52Z vs AM1DS-1215SH40Z
AM1DS-1215SH30Z Match 93%	DComponents DC DC CONVERTER 15V 1W	AM1DS-1215SH52Z vs AM1DS-1215SH30Z
AM1DS-1215SH60Z Match 98%	DComponents DC DC CONVERTER 15V 1W	AM1DS-1215SH52Z vs AM1DS-1215SH60Z
R12P15S/R6.4 Match 97%	RECOM Power DC DC CONVERTER 15V 1W	AM1DS-1215SH52Z vs R12P15S/R6.4
RP-1215S Match 100%	RECOM Power DC DC CONVERTER 15V 1W	AM1DS-1215SH52Z vs RP-1215S

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 742

Shipped from

HK warehouse

Expected Shipping Date

Oct 30 - Nov 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$8.5500~~	~~$8.55~~

Current price of AM1DS-1215SH52Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
