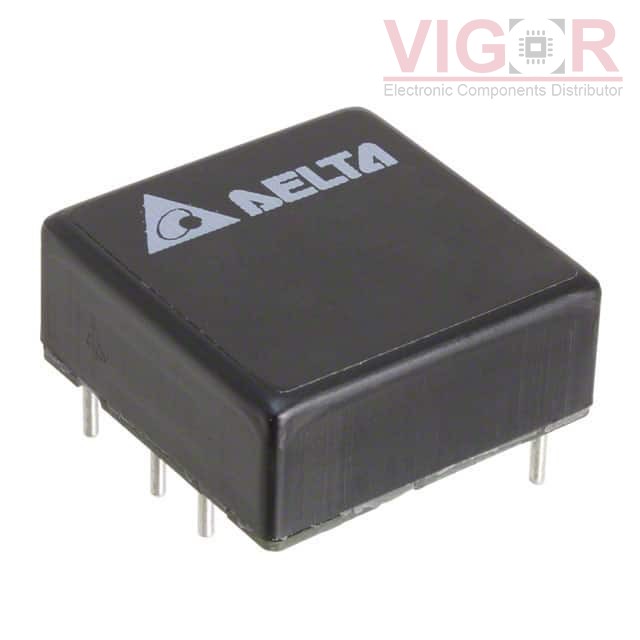

S24DE12001PDFH

Part No :: S24DE12001PDFH

Manufacturer: Delta Electronics / Power

VIGOR # :: 4145859

Description: DC DC CONVERTER +/-12V 30W

Catalog: DC DC Converters

DataSheet: S24DE12001PDFH PDF

Country of origin: -

Date code: -

S24DE12001PDFH Specifications

Type	Description
Series:	S24DE (30W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	-
Voltage - Input (Min):	9V
Voltage - Input (Max):	36V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.25A, 1.25A
Power (Watts):	30 W
Voltage - Isolation:	1.6 kV
Applications:	ITE (Commercial), Railway
Features:	Remote On/Off, OCP, OTP, OVP, UVLO
Operating Temperature:	-40°C ~ 85°C (With Derating)
Efficiency:	88%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	1.00" L x 1.00" W x 0.66" H (25.4mm x 25.4mm x 16.8mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
