PTN78020AAH

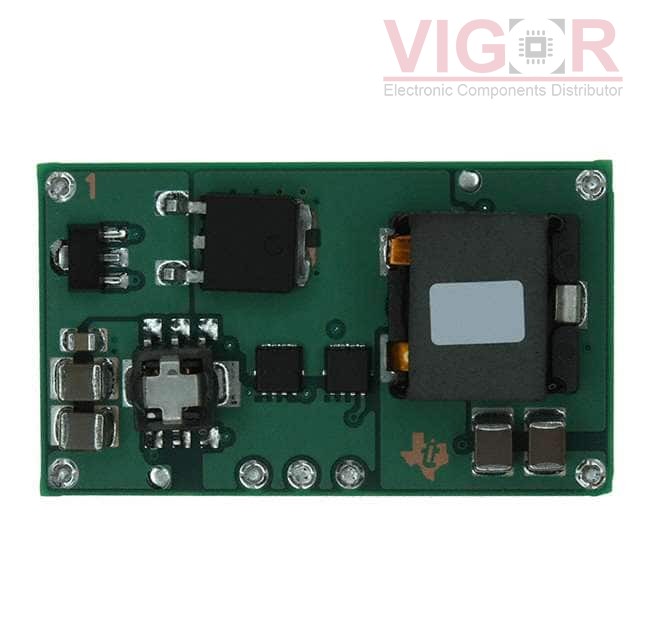

Product image
Product thumb
Part No :

PTN78020AAH

Manufacturer
Texas Instruments
VIGOR # :

4146773

Description
DC DC CONVERTER -15 TO -3V
Catalog
DC DC Converters
DataSheet
PTN78020AAH PDF
Country of origin
Date code
23+
ads
PTN78020AAH Specifications
Type Description
Series:PTN78020A (25W)
Package:Tray
Part Status:Active
Type:Non-Isolated PoL Module
Number of Outputs:1
Voltage - Input (Min):9V
Voltage - Input (Max):29V
Voltage - Output 1:-15 ~ -3V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):4A
Power (Watts):-
Voltage - Isolation:-
Applications:ITE (Commercial)
Features:OCP, OTP, UVLO
Operating Temperature:-40°C ~ 85°C
Efficiency:87%
Mounting Type:Through Hole
Package / Case:7-DIP Module
Size / Dimension:1.50" L x 0.87" W x 0.36" H (38.1mm x 22.1mm x 9.1mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:-
