AM5T-2403SH35Z

Part No :: AM5T-2403SH35Z

Manufacturer: DComponents

VIGOR # :: 4147123

Description: DC DC CONVERTER 3.3V 5W

Catalog: DC DC Converters

DataSheet: AM5T-2403SH35Z PDF

Country of origin: -

Date code: -

AM5T-2403SH35Z Specifications

Type	Description
Series:	AM5T-Z (5W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	18V
Voltage - Input (Max):	36V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	1.3A
Power (Watts):	5 W
Voltage - Isolation:	3.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, Remote Sense
Operating Temperature:	-40°C ~ 85°C
Efficiency:	75%
Mounting Type:	Through Hole
Package / Case:	24-DIP Module, 7 Leads
Size / Dimension:	1.25" L x 0.80" W x 0.40" H (31.8mm x 20.3mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CE
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
JCD0524S3V3 Match 90%	XP Power DC DC CONVERTER 3.3V 5W	AM5T-2403SH35Z vs JCD0524S3V3
AM5TW-2403SH35Z Match 95%	DComponents DC DC CONVERTER 3.3V 4.3W	AM5T-2403SH35Z vs AM5TW-2403SH35Z
AM4T-2403SH35Z Match 90%	DComponents DC DC CONVERTER 3.3V 4W	AM5T-2403SH35Z vs AM4T-2403SH35Z
AM5T-2403SZ Match 89%	DComponents DC DC CONVERTER 3.3V 5W	AM5T-2403SH35Z vs AM5T-2403SZ
AM5TW-4803SH35Z Match 95%	DComponents DC DC CONVERTER 3.3V 4.3W	AM5T-2403SH35Z vs AM5TW-4803SH35Z
AM4TW-4803SH35Z Match 90%	DComponents DC DC CONVERTER 3.3V 4W	AM5T-2403SH35Z vs AM4TW-4803SH35Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 527

Shipped from

HK warehouse

Expected Shipping Date

Jul 22 - Jul 26 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$15.2900~~	~~$15.29~~

Current price of AM5T-2403SH35Z is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com

Hot Products

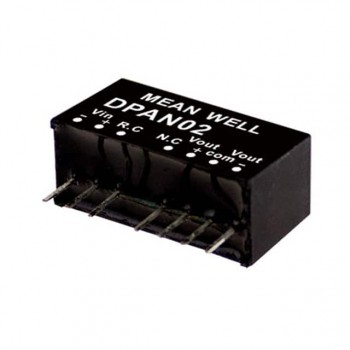

DPAN02B-15

DC DC CONVERTER +/-15V 2W

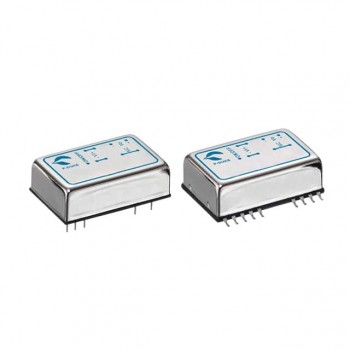

FKC12-48D12W

DC DC CONVERTER +/-12V 12W

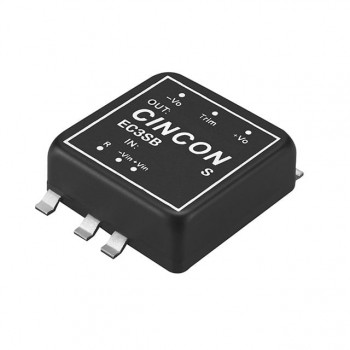

EC3SB-48D12S
