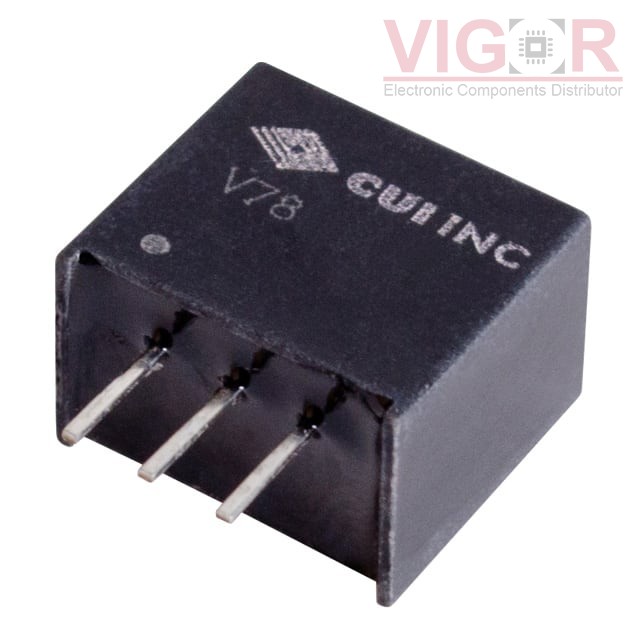

V7809-500

Part No :: V7809-500

Manufacturer: CUI Inc.

VIGOR # :: 4149232

Description: DC DC CONVERTER 9V 4.5W

Catalog: DC DC Converters

DataSheet: V7809-500 PDF

Country of origin: -

Date code: -

V7809-500 Specifications

Type	Description
Series:	V78-500
Package:	Tube
Part Status:	Active
Type:	Linear Regulator Replacement
Number of Outputs:	1
Voltage - Input (Min):	11V
Voltage - Input (Max):	32V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	4.5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	OTP, SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	95%
Mounting Type:	Through Hole
Package / Case:	3-SIP Module
Size / Dimension:	0.45" L x 0.30" W x 0.40" H (11.4mm x 7.6mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
SR05S09 Match 96%	XP Power DC DC CONVERTER 9V 5W	V7809-500 vs SR05S09
SR05S7V2 Match 73%	XP Power DC DC CONVERTER 7.2V 4W	V7809-500 vs SR05S7V2
TSR 0.5-2490 Match 100%	TRACO Power DC DC CONVERTER 9V 4.5W	V7809-500 vs TSR 0.5-2490
PM-500A90 Match 100%	Volgen (Kaga Electronics USA) DC DC CONVERTER 9V 500MA	V7809-500 vs PM-500A90
PM05S090A Match 96%	Delta Electronics / Power DC DC CONVERTER 9V 5W	V7809-500 vs PM05S090A
P7805-Q24-S9-S Match 96%	CUI Inc. DC DC CONVERTER 9V 5W	V7809-500 vs P7805-Q24-S9-S
