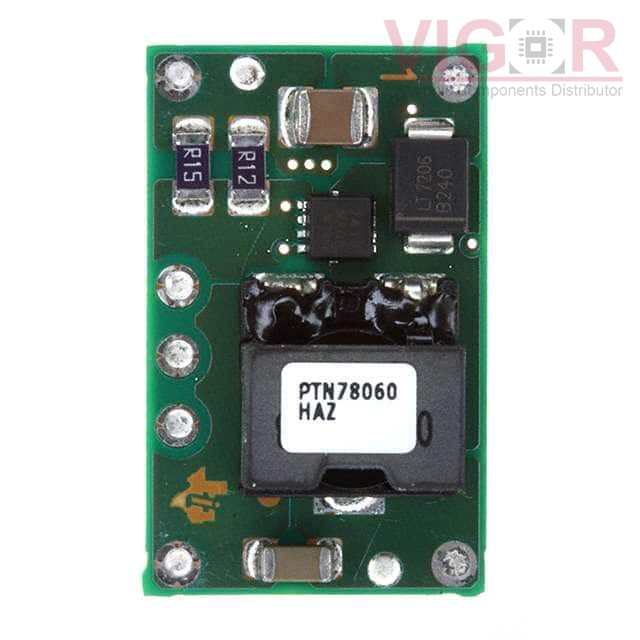

PTN78060HAZ

Part No :: PTN78060HAZ

Manufacturer: Texas Instruments

VIGOR # :: 4151428

Description: DC DC CONVERTER 11.85-22V

Catalog: DC DC Converters

DataSheet: PTN78060HAZ PDF

Country of origin: -

Date code: -

PTN78060HAZ Specifications

Type	Description
Series:	PTN78060H
Package:	Tray
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	15V
Voltage - Input (Max):	36V
Voltage - Output 1:	11.85 ~ 22V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OTP, UVLO
Operating Temperature:	-40°C ~ 85°C
Efficiency:	96%
Mounting Type:	Surface Mount
Package / Case:	7-SMD Module
Size / Dimension:	1.00" L x 0.62" W x 0.38" H (25.4mm x 15.7mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-
