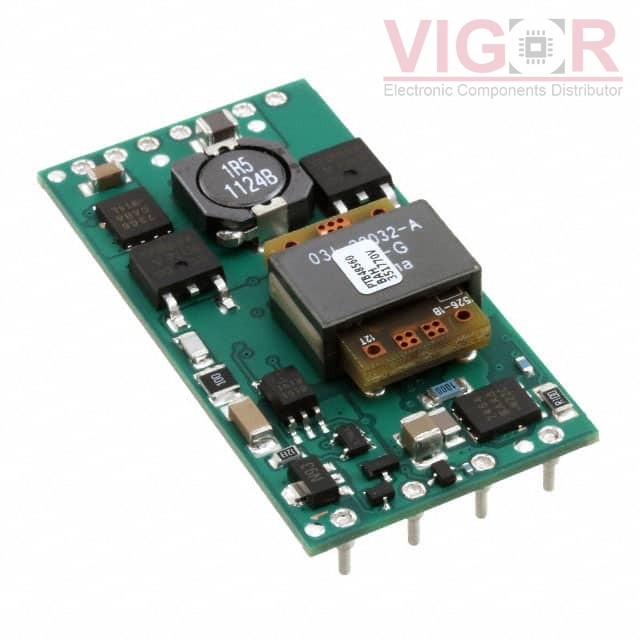

PTB48560BAH

Part No :: PTB48560BAH

Manufacturer: VIGOR

VIGOR # :: 4154407

Description: DC-DC REGULATED POWER SUPPLY MOD

Catalog: DC DC Converters

DataSheet: PTB48560BAH PDF

Country of origin: -

Date code: -

PTB48560BAH Specifications

Type	Description
Series:	PTB48560 (30W)
Package:	Bulk
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	36V
Voltage - Input (Max):	75V
Voltage - Output 1:	1.8 ~ 3.6V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	8A
Power (Watts):	30 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 85°C
Efficiency:	82%
Mounting Type:	Through Hole
Package / Case:	11-DIP Module
Size / Dimension:	2.05" L x 1.05" W x 0.39" H (51.9mm x 26.5mm x 10.0mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PTB48560AAH Match 82%	Texas Instruments DC DC CONVERTER 3.6-5.5V 30W	PTB48560BAH vs PTB48560AAH

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 81

Shipped from

HK warehouse

Expected Shipping Date

Jul 27 - Jul 31 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$56.5800~~	~~$56.58~~
12	~~$56.5800~~	~~$678.96~~

Current price of PTB48560BAH is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
