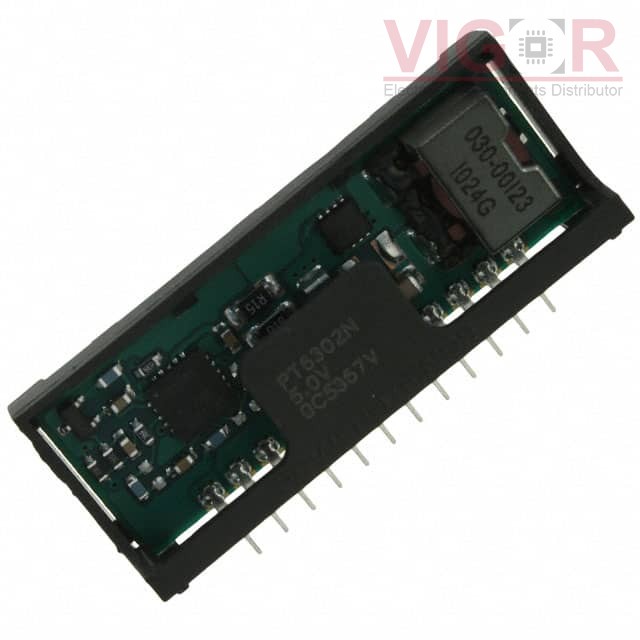

PT6305A

Part No :: PT6305A

Manufacturer: VIGOR

VIGOR # :: 4154565

Description: SWITCHING REGULATOR

Catalog: DC DC Converters

DataSheet: PT6305A PDF

Country of origin: -

Date code: -

PT6305A Specifications

Type	Description
Series:	PT6305
Package:	Tray
Part Status:	Obsolete
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	9V
Voltage - Output 1:	3.3V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	3A
Power (Watts):	-
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	0°C ~ 70°C
Efficiency:	80%
Mounting Type:	Through Hole, Right Angle
Package / Case:	12-SIP Module
Size / Dimension:	2.06" L x 0.67" W x 0.38" H (52.3mm x 17.0mm x 9.7mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
R-733.3D Match 100%	RECOM Power DC DC CONVERTER 3.3V 9.9W	PT6305A vs R-733.3D
R-523.3DA Match 74%	RECOM Power DC DC CONVERTER 3.3V 6.6W	PT6305A vs R-523.3DA
R-543.3DA Match 82%	RECOM Power DC DC CONVERTER 3.3V 13.2W	PT6305A vs R-543.3DA
R-533.3DA Match 100%	RECOM Power DC DC CONVERTER 3.3V 9.9W	PT6305A vs R-533.3DA
R-723.3D Match 74%	RECOM Power DC DC CONVERTER 3.3V 6.6W	PT6305A vs R-723.3D
R-743.3D Match 82%	RECOM Power DC DC CONVERTER 3.3V 13.2W	PT6305A vs R-743.3D

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 50

Shipped from

HK warehouse

Expected Shipping Date

Aug 02 - Aug 06 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$19.6900~~	~~$19.69~~

Current price of PT6305A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
