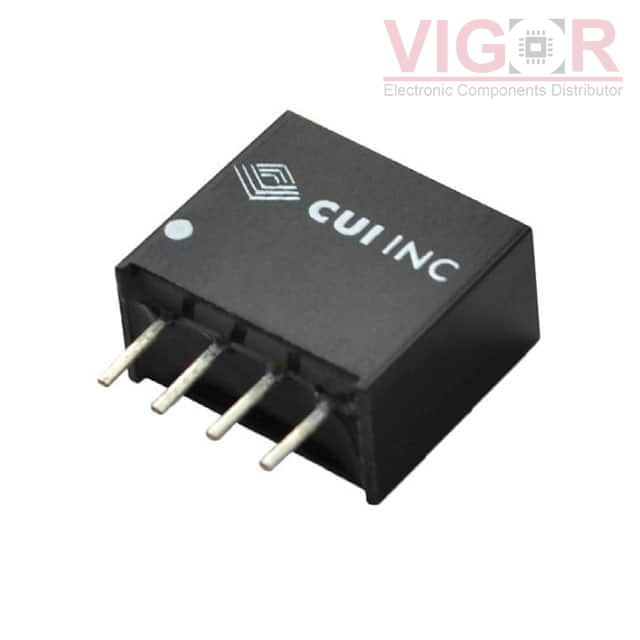

PCSA1-S24-S12-S

Part No :: PCSA1-S24-S12-S

Manufacturer: CUI Inc.

VIGOR # :: 4154994

Description: DC DC CONVERTER 12V 1W

Catalog: DC DC Converters

DataSheet: PCSA1-S24-S12-S PDF

Country of origin: -

Date code: -

PCSA1-S24-S12-S Specifications

Type	Description
Series:	PSCA1-S (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	12V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	84mA
Power (Watts):	1 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 100°C
Efficiency:	80%
Mounting Type:	Through Hole
Package / Case:	4-SIP Module
Size / Dimension:	0.46" L x 0.30" W x 0.40" H (11.6mm x 7.5mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
PUA2412S1A Match 91%	Flex Power Modules DC DC CONVERTER 12V 1W	PCSA1-S24-S12-S vs PUA2412S1A
B2412S-1WR3 Match 94%	Mornsun DC DC CONVERTER 12V 1W	PCSA1-S24-S12-S vs B2412S-1WR3
PCSA1-S24-S15-S Match 71%	CUI Inc. DC DC CONVERTER 15V 1W	PCSA1-S24-S12-S vs PCSA1-S24-S15-S
B2415S-1WR3 Match 66%	Mornsun DC DC CONVERTER 15V 1W	PCSA1-S24-S12-S vs B2415S-1WR3
PDS1-S24-S15-S Match 66%	CUI Inc. DC DC CONVERTER 15V 1W	PCSA1-S24-S12-S vs PDS1-S24-S15-S
PDS1-S24-S12-S Match 94%	CUI Inc. DC DC CONVERTER 12V 1W	PCSA1-S24-S12-S vs PDS1-S24-S12-S

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 577

Shipped from

HK warehouse

Expected Shipping Date

Aug 01 - Aug 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$3.8700~~	~~$3.87~~
5	~~$3.8120~~	~~$19.06~~
16	~~$3.7569~~	~~$60.11~~
32	~~$3.6466~~	~~$116.69~~
64	~~$3.5359~~	~~$226.30~~
112	~~$3.4255~~	~~$383.66~~
256	~~$3.3150~~	~~$848.64~~
512	~~$3.0940~~	~~$1 584.13~~

Current price of PCSA1-S24-S12-S is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
