JCA0248D03

JCA0248D03

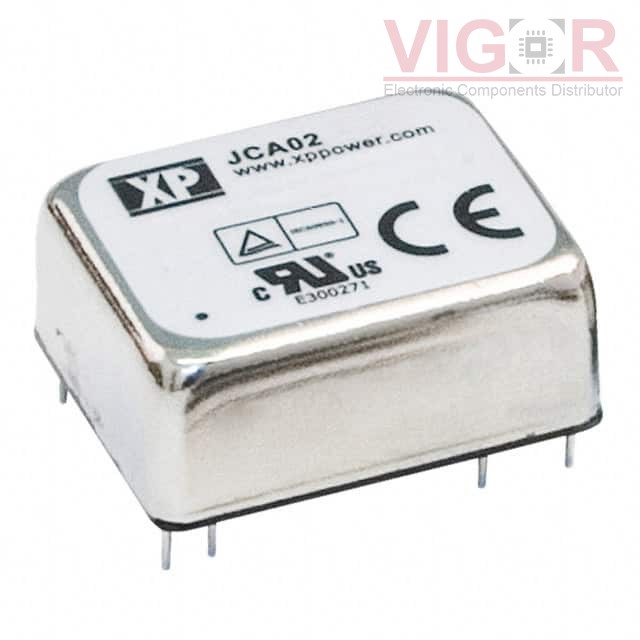

Image is for reference,
please contact us to get the real picture

Part No :

JCA0248D03

Manufacturer
XP Power
Description
DC DC CONVERTER +/-15V 2W
Catalog
DC DC Converters
Shipped from
HK warehouse
Expected Shipping Date
Oct 16 - Oct 20 2025
DataSheet
JCA0248D03 PDF
Availability
864 pieces
Unit Price
$17.15500

Current price of JCA0248D03 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team [email protected]

JCA0248D03 Specifications
Type Description
Series:JCA (2W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):36V
Voltage - Input (Max):75V
Voltage - Output 1:15V
Voltage - Output 2:-15V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):70mA, 70mA
Power (Watts):2 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:OCP, OVP, SCP, UVLO
Operating Temperature:-40°C ~ 100°C
Efficiency:70%
Mounting Type:Through Hole
Package / Case:24-DIP Module, 8 Leads
Size / Dimension:1.00" L x 0.80" W x 0.39" H (25.4mm x 20.3mm x 10.0mm)
Supplier Device Package:-
Control Features:-
Approval Agency:-
Standard Number:62368-1
