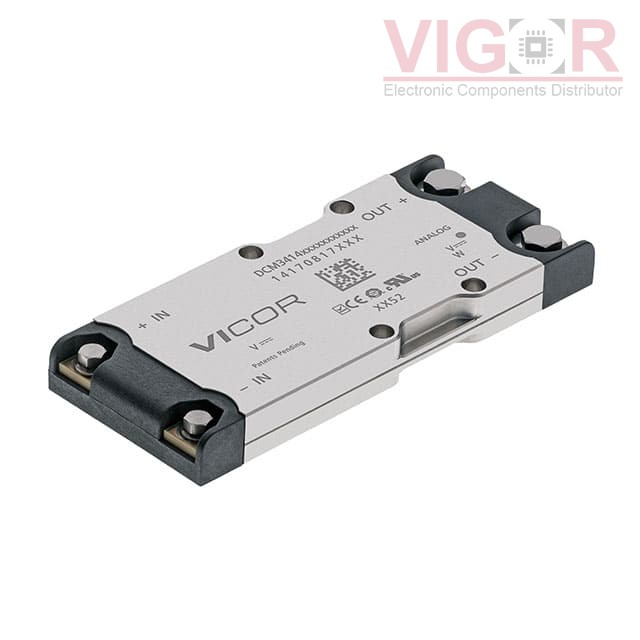

DCM3414B50M06A8C09

Part No :: DCM3414B50M06A8C09

Manufacturer: Vicor

VIGOR # :: 4156828

Description: DC DC CONVERTER 5V 180W

Catalog: DC DC Converters

DataSheet: DCM3414B50M06A8C09 PDF

Country of origin: -

Date code: -

DCM3414B50M06A8C09 Specifications

Type	Description
Series:	VI Chip® DCM® (180W)
Package:	Box
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	16V
Voltage - Input (Max):	50V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	36A
Power (Watts):	180 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, UVLO
Operating Temperature:	-20°C ~ 125°C
Efficiency:	90.5%
Mounting Type:	Through Hole
Package / Case:	9-DIP Module
Size / Dimension:	3.47" L x 1.40" W x 0.37" H (88.1mm x 35.5mm x 9.3mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
DCM3623T50M06A8T00 Match 95%	Vicor DC DC CONVERTER 5V 180W	DCM3414B50M06A8C09 vs DCM3623T50M06A8T00
DCM3414B50M06A8T09 Match 100%	Vicor DC DC CONVERTER 5V 180W	DCM3414B50M06A8C09 vs DCM3414B50M06A8T09
DCM3623T50M06A8M00 Match 95%	Vicor DC DC CONVERTER 5V 180W	DCM3414B50M06A8C09 vs DCM3623T50M06A8M00
MDCM28AP050M180A50 Match 95%	Vicor DC DC CONVERTER 5V 180W	DCM3414B50M06A8C09 vs MDCM28AP050M180A50
