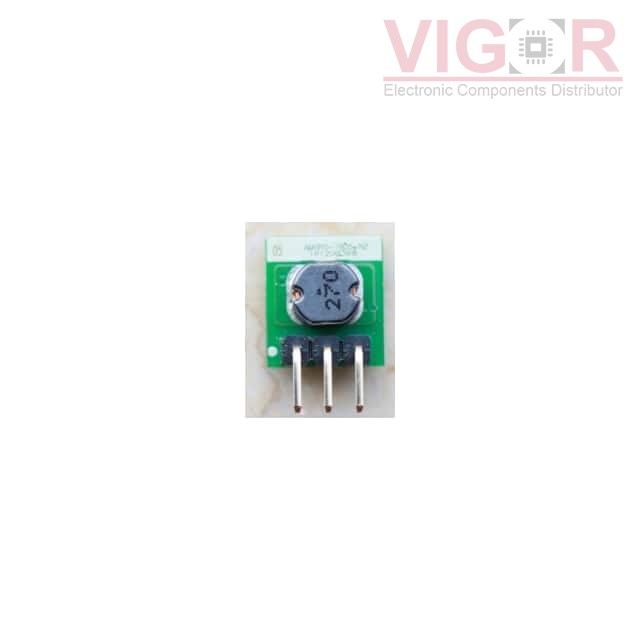

AMSRL-7815JZ

Part No :: AMSRL-7815JZ

Manufacturer: DComponents

VIGOR # :: 4156837

Description: DC DC CONVERTER 15V 7.5W

Catalog: DC DC Converters

DataSheet: AMSRL-7815JZ PDF

Country of origin: -

Date code: -

AMSRL-7815JZ Specifications

Type	Description
Series:	AMSRL-78JZ (7.5W)
Package:	Tube
Part Status:	Active
Type:	Non-Isolated PoL Module
Number of Outputs:	1
Voltage - Input (Min):	19V
Voltage - Input (Max):	36V
Voltage - Output 1:	15V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	500mA
Power (Watts):	7.5 W
Voltage - Isolation:	-
Applications:	ITE (Commercial)
Features:	Adjustable Output, Remote On/Off
Operating Temperature:	-40°C ~ 71°C (With Derating)
Efficiency:	95%
Mounting Type:	Surface Mount
Package / Case:	10-SMD Module, 8 Leads
Size / Dimension:	0.60" L x 0.45" W x 0.32" H (15.2mm x 11.4mm x 8.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
V78E15-500-SMT-TR Match 100%	CUI Inc. DC DC CONVERTER 15V 7.5W	AMSRL-7815JZ vs V78E15-500-SMT-TR
LMT78_15-0.5R Match 100%	TE Connectivity AMP Connectors DC-DC POL	AMSRL-7815JZ vs LMT78_15-0.5R
K7815T-500R3 Match 100%	Mornsun DC DC CONVERTER 15V 7.5W	AMSRL-7815JZ vs K7815T-500R3
K7815T-500R3-TR Match 100%	Mornsun DC DC CONVERTER 15V 7.5W	AMSRL-7815JZ vs K7815T-500R3-TR
SVR05S15 Match 100%	XP Power DC DC CONVERTER 15V	AMSRL-7815JZ vs SVR05S15
SVR05S15-TR Match 100%	XP Power DC DC CONVERTER 15V	AMSRL-7815JZ vs SVR05S15-TR

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1839

Shipped from

HK warehouse

Expected Shipping Date

Aug 01 - Aug 05 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.6100~~	~~$2.61~~

Current price of AMSRL-7815JZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
