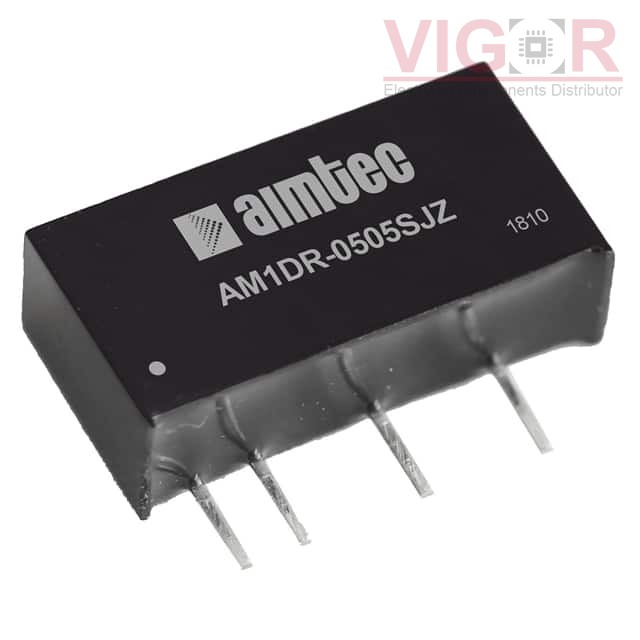

AM1DR-0509SH30JZ

Part No :: AM1DR-0509SH30JZ

Manufacturer: DComponents

VIGOR # :: 4156996

Description: DC DC CONVERTER 9V 1W

Catalog: DC DC Converters

DataSheet: AM1DR-0509SH30JZ PDF

Country of origin: -

Date code: -

AM1DR-0509SH30JZ Specifications

Type	Description
Series:	AM1DR-NZ (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	4.5V
Voltage - Input (Max):	5.5V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	111mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	ITE (Commercial)
Features:	-
Operating Temperature:	-40°C ~ 71°C (With Derating)
Efficiency:	71%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.38" H (19.7mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	cULus, cURus
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
RE-0509S/HP Match 95%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509SH30JZ vs RE-0509S/HP
RP-0509S/P/X2 Match 93%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509SH30JZ vs RP-0509S/P/X2
RP-0509S/X2 Match 93%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509SH30JZ vs RP-0509S/X2
VHS1-S5-S9-SIP Match 91%	CUI Inc. DC DC CONVERTER 9V 1W	AM1DR-0509SH30JZ vs VHS1-S5-S9-SIP
RK-0509S Match 100%	RECOM Power DC DC CONVERTER 9V 1W	AM1DR-0509SH30JZ vs RK-0509S
AM1D-0509SH60Z Match 91%	DComponents DC DC CONVERTER 9V 1W	AM1DR-0509SH30JZ vs AM1D-0509SH60Z

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1077

Shipped from

HK warehouse

Expected Shipping Date

Nov 03 - Nov 07 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$2.9400~~	~~$2.94~~

Current price of AM1DR-0509SH30JZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
