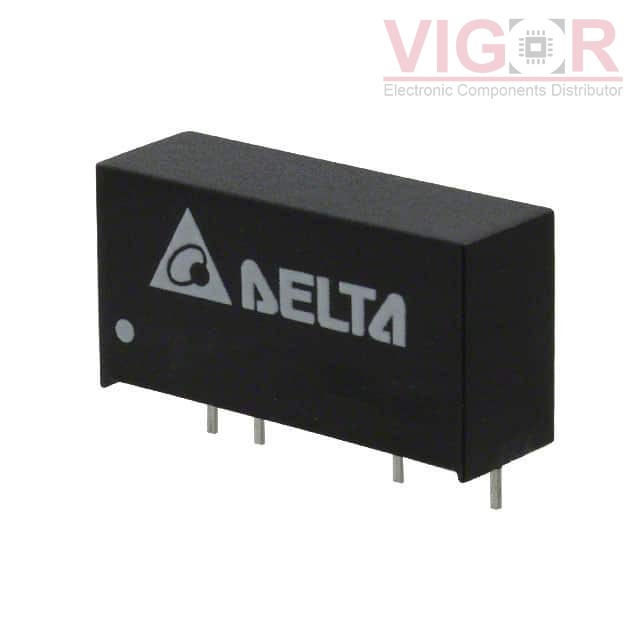

PD01S1205A

Part No :: PD01S1205A

Manufacturer: Delta Electronics / Power

VIGOR # :: 4157809

Description: DC DC CONVERTER 5V 1W

Catalog: DC DC Converters

DataSheet: PD01S1205A PDF

Country of origin: -

Date code: -

PD01S1205A Specifications

Type	Description
Series:	PD01S/D (1W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	10.8V
Voltage - Input (Max):	13.2V
Voltage - Output 1:	5V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	200mA
Power (Watts):	1 W
Voltage - Isolation:	3 kV
Applications:	Medical
Features:	SCP
Operating Temperature:	-40°C ~ 85°C
Efficiency:	73%
Mounting Type:	Through Hole
Package / Case:	7-SIP Module, 4 Leads
Size / Dimension:	0.77" L x 0.24" W x 0.40" H (19.6mm x 6.0mm x 10.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Alternative Products

Part Number	Manufacturer & Description	Compare
AM1DS-1205SH30Z Match 100%	DComponents DC DC CONVERTER 5V 1W	PD01S1205A vs AM1DS-1205SH30Z
1S7WA_1205S3RP Match 100%	TE Connectivity AMP Connectors DC-DC	PD01S1205A vs 1S7WA_1205S3RP
RK-1205S Match 100%	RECOM Power DC DC CONVERTER 5V 1W	PD01S1205A vs RK-1205S
AM1D-1205SH30-RZ Match 100%	DComponents DC DC CONVERTER 5V 1W	PD01S1205A vs AM1D-1205SH30-RZ
RK-1205S/H Match 96%	RECOM Power DC DC CONVERTER 5V 1W	PD01S1205A vs RK-1205S/H
RE-1205S/HP Match 95%	RECOM Power DC DC CONVERTER 5V 1W	PD01S1205A vs RE-1205S/HP

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1651

Shipped from

HK warehouse

Expected Shipping Date

Jul 25 - Jul 29 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$5.5079~~	~~$5.51~~
5	~~$5.4276~~	~~$27.14~~
10	~~$5.3483~~	~~$53.48~~

Current price of PD01S1205A is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
