CHB75-24S05

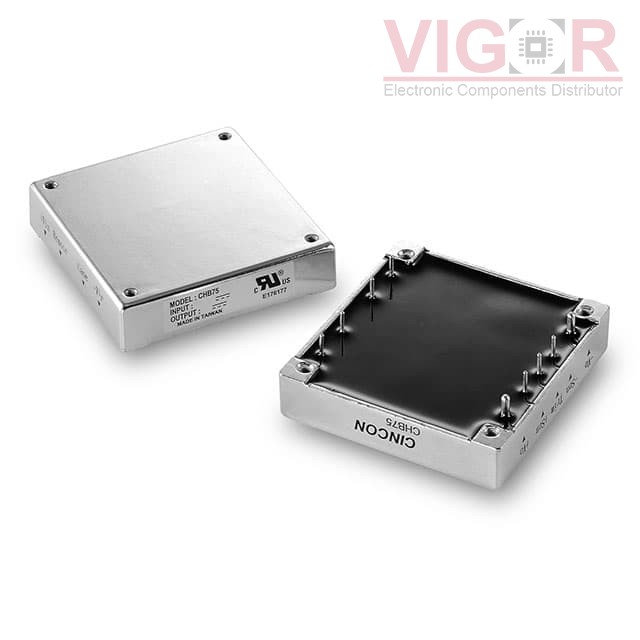

Product image
Product thumb
Part No :

CHB75-24S05

Manufacturer
Cincon
VIGOR # :

4158462

Description
DC DC CONVERTER 5V 75W
Catalog
DC DC Converters
DataSheet
CHB75-24S05 PDF
Country of origin
-
Date code
-
ads
CHB75-24S05 Specifications
Type Description
Series:CHB75 (75W)
Package:Tray
Part Status:Active
Type:Isolated Module
Number of Outputs:1
Voltage - Input (Min):18V
Voltage - Input (Max):36V
Voltage - Output 1:5V
Voltage - Output 2:-
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):15A
Power (Watts):75 W
Voltage - Isolation:1.5 kV
Applications:ITE (Commercial)
Features:Remote On/Off, OCP, OTP, OVP, SCP, UVLO
Operating Temperature:-40°C ~ 100°C (With Derating)
Efficiency:84%
Mounting Type:Through Hole
Package / Case:Half Brick
Size / Dimension:2.40" L x 2.28" W x 0.50" H (61.0mm x 57.9mm x 12.7mm)
Supplier Device Package:Half Brick
Control Features:Enable, Active High
Approval Agency:-
Standard Number:-
Alternative Products
Part Number Manufacturer & Description Compare
CHE75W-24S05 Match 100%
Cincon
DC DC CONVERTER 5V 75W
 CHB75-24S05 vs CHE75W-24S05
RP75H-2405SRW/N-HC Match 95%
RECOM Power
DC DC CONVERTER 5V 75W
 CHB75-24S05 vs RP75H-2405SRW/N-HC
RP75H-4805SRW/N-HC Match 95%
RECOM Power
DC DC CONVERTER 5V 75W
 CHB75-24S05 vs RP75H-4805SRW/N-HC
CHB75W-24S05N Match 100%
Cincon
DC DC CONVERTER 5V 75W
 CHB75-24S05 vs CHB75W-24S05N
CHB75W-48S05N Match 100%
Cincon
DC DC CONVERTER 5V 75W
 CHB75-24S05 vs CHB75W-48S05N
ICH7524WS05N Match 100%
XP Power
DC DC CONVERTER 5V 75W
 CHB75-24S05 vs ICH7524WS05N
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 251
Shipped from
HK warehouse
Expected Shipping Date
Jul 29 - Aug 02 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $74.1500 $74.15
5 $73.5707 $367.85
10 $72.9913 $729.91
25 $70.6740 $1 766.85
50 $67.1985 $3 359.92
100 $62.5640 $6 256.40

Current price of CHB75-24S05 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
