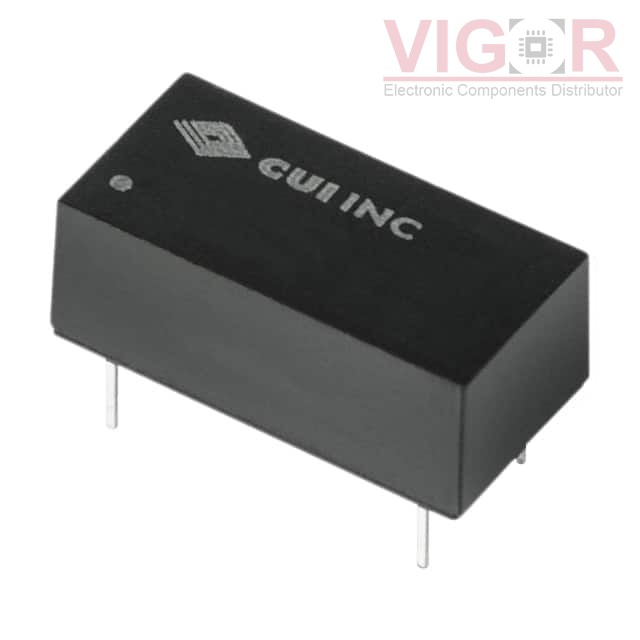

PDM2-S24-S9-D

Part No :: PDM2-S24-S9-D

Manufacturer: CUI Inc.

VIGOR # :: 4158575

Description: DC DC CONVERTER 9V 2W

Catalog: DC DC Converters

DataSheet: PDM2-S24-S9-D PDF

Country of origin: -

Date code: -

PDM2-S24-S9-D Specifications

Type	Description
Series:	PDM2-D (2W)
Package:	Tube
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	1
Voltage - Input (Min):	21.6V
Voltage - Input (Max):	26.4V
Voltage - Output 1:	9V
Voltage - Output 2:	-
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	222mA
Power (Watts):	2 W
Voltage - Isolation:	1.5 kV
Applications:	ITE (Commercial)
Features:	SCP
Operating Temperature:	-40°C ~ 105°C (With Derating)
Efficiency:	84%
Mounting Type:	Through Hole
Package / Case:	14-DIP Module, 5 Leads
Size / Dimension:	0.80" L x 0.40" W x 0.32" H (20.3mm x 10.2mm x 8.2mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	CB Scheme, EN, IEC, UL
Standard Number:	55024; 55032 Class A; 60950-1

Alternative Products

Part Number	Manufacturer & Description	Compare
PDM2-S24-S12-D Match 63%	CUI Inc. DC DC CONVERTER 12V 2W	PDM2-S24-S9-D vs PDM2-S24-S12-D
