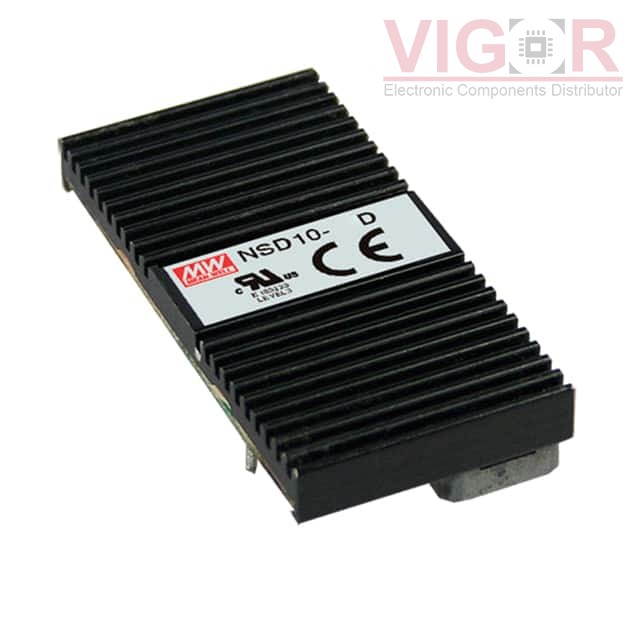

NSD10-48D12

Part No :: NSD10-48D12

Manufacturer: MEAN WELL

VIGOR # :: 4159053

Description: DC DC CONVERTER +/-12V 10W

Catalog: DC DC Converters

DataSheet: NSD10-48D12 PDF

Country of origin: -

Date code: -

NSD10-48D12 Specifications

Type	Description
Series:	NSD10-D (10W)
Package:	-
Part Status:	Active
Type:	Isolated Module
Number of Outputs:	2
Voltage - Input (Min):	22V
Voltage - Input (Max):	72V
Voltage - Output 1:	12V
Voltage - Output 2:	-12V
Voltage - Output 3:	-
Voltage - Output 4:	-
Current - Output (Max):	420mA, 420mA
Power (Watts):	10 W
Voltage - Isolation:	1 kV
Applications:	ITE (Commercial)
Features:	Remote On/Off, OCP, OVP, SCP
Operating Temperature:	-25°C ~ 70°C (With Derating)
Efficiency:	77%
Mounting Type:	Through Hole
Package / Case:	6-DIP Module
Size / Dimension:	2.00" L x 1.00" W x 0.41" H (50.8mm x 25.4mm x 10.5mm)
Supplier Device Package:	-
Control Features:	-
Approval Agency:	-
Standard Number:	-

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 1464

Shipped from

HK warehouse

Expected Shipping Date

Dec 30 - Jan 03 2025

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$12.84~~	~~$12.84~~
10	~~$12.64~~	~~$126.41~~
25	~~$12.45~~	~~$311.18~~
50	~~$12.06~~	~~$602.92~~

Current price of NSD10-48D12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
