JCK4024D12

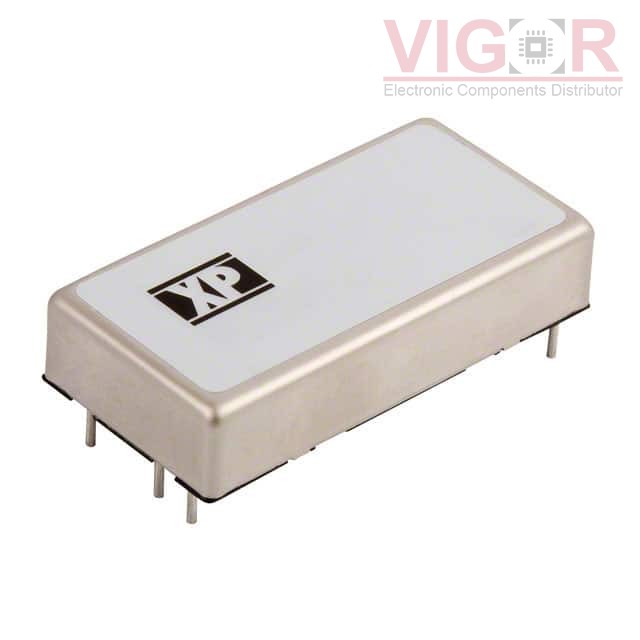

Product image
Product thumb
Part No :

JCK4024D12

Manufacturer
XP Power
VIGOR # :

4159066

Description
DC DC CONVERTER +/-12V 40W
Catalog
DC DC Converters
DataSheet
JCK4024D12 PDF
Country of origin
-
Date code
-
ads
JCK4024D12 Specifications
Type Description
Series:JCK (40W)
Package:Tube
Part Status:Active
Type:Isolated Module
Number of Outputs:2
Voltage - Input (Min):18V
Voltage - Input (Max):36V
Voltage - Output 1:12V
Voltage - Output 2:-12V
Voltage - Output 3:-
Voltage - Output 4:-
Current - Output (Max):1.67A, 1.67A
Power (Watts):40 W
Voltage - Isolation:1.6 kV
Applications:ITE (Commercial)
Features:Remote On/Off, OCP, OVP, SCP, UVLO
Operating Temperature:-40°C ~ 100°C
Efficiency:91%
Mounting Type:Through Hole
Package / Case:6-DIP Module
Size / Dimension:2.00" L x 1.00" W x 0.40" H (50.8mm x 25.4mm x 10.2mm)
Supplier Device Package:-
Control Features:Enable, Active High
Approval Agency:-
Standard Number:-
  • Please confirm the specifications of the products when ordering.
  • MOQ means the minimum order quantity required to purchase each parts.
  • If you have special order instructions,please note it on the ordering pages.
  • The Pre-Shipment Inspection (PSI) will be applied.
  • You can email us to change the order details before shipment.
  • Orders cannot be canceled after shipping the packages.
  • TT in advance (bank transfer), Credit Card, PayPal can be chosen.
  • Cash transfer only. (Transfer with checks and bills are not accepted.)
  • Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
  • If you need the detailed invoice or tax ID,please email us.
  • FedEx, DHL, and UPS can be selected.
  • You can select whether to charge shipping fee by your shipping account or to charge by our side.
  • Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
  • The shopping cart will automatically calculate the shipping cost.
  • Delivery time: At the same day (Order deadline is 2pm, HK Time).
  • Delivery date: usually 2 to 7 working days.
  • It is unable to appoint a date of delivery.
  • Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)
In Stock: 1611
Shipped from
HK warehouse
Expected Shipping Date
Oct 30 - Nov 03 2026
Pricing(USD)
Quantity Unit Price Ext. Price
1 $63.9200 $63.92
10 $63.9200 $639.20

Current price of JCK4024D12 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
